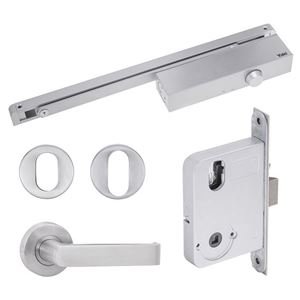

Yale Simplicity S1 Lever & Turn Complete Door Kit SS

Yale Simplicity S1 Lever &Turn Complete Door Kit Stainless Steel

The Yale Simplicity Series is total door solution specifically targeted at the multi-residential development new construction market. Supplied in a consolidated door kit the Yale Simplicity Series incorporates a range of stainless steel rose door furniture, a mortice lock and door closer specifically intended for use on apartment doors.

Benefits

• Lock, door furniture and door closer all site handable and provided in a consolidated entry door kit simplifying the supply and installation process
• 2 hour fire rated
• Complimented with passage and privacy lever sets for a total apartment solution

Mortice Lock

• Suits 32mm - 45mm thick doors
• Backset - 60mm
• Latch projection - 15mm
• Door Clearance - 3mm - 5mm
• Material - Zinc Alloy case
• Stainless Steel faceplates
• Fire Rated - 2hrs

Door Furniture

• Dimensions - 54mm Dia. x 12mm H
• Escutcheon Dimensions - 46mm Dia. x 7.5mm H
• Suits 32mm - 45mm thick doors
• Material - 304 Stainless Steel
• AS1428.1 compliant
• Fire Rated - 2hrs

Door Closer

• Suit Sz3 (60kg/950mm W) doors
• Suits PULL side applications only
• Back check
• Maximum 130 degree opening
• Fire Rated - 2hrs
• Yale Simplicity Catalogue
• Yale Warranty
