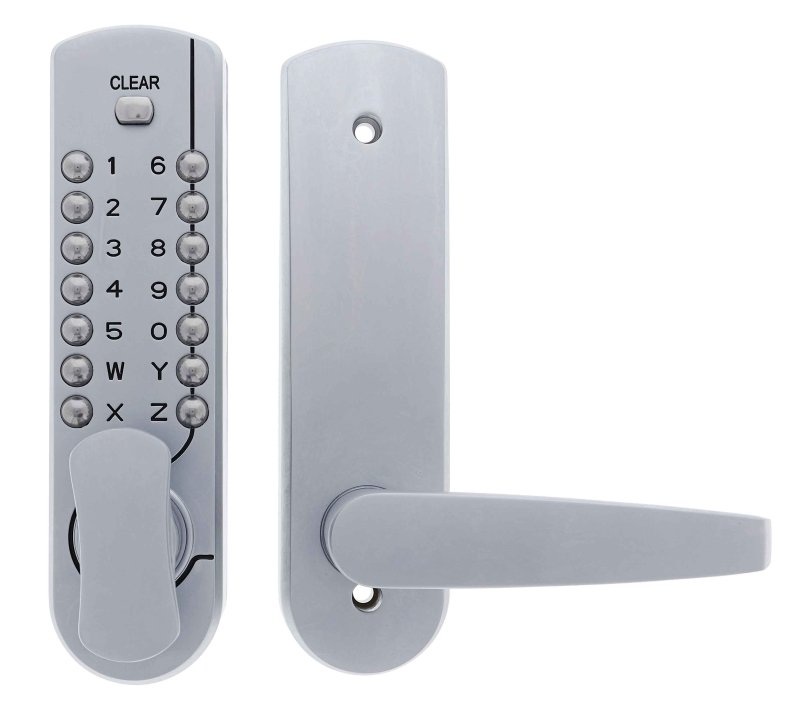

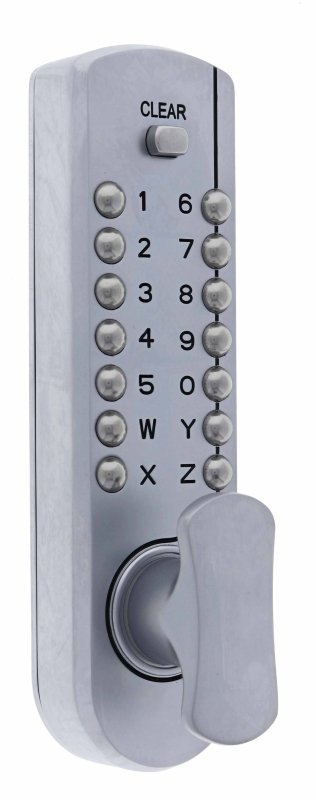

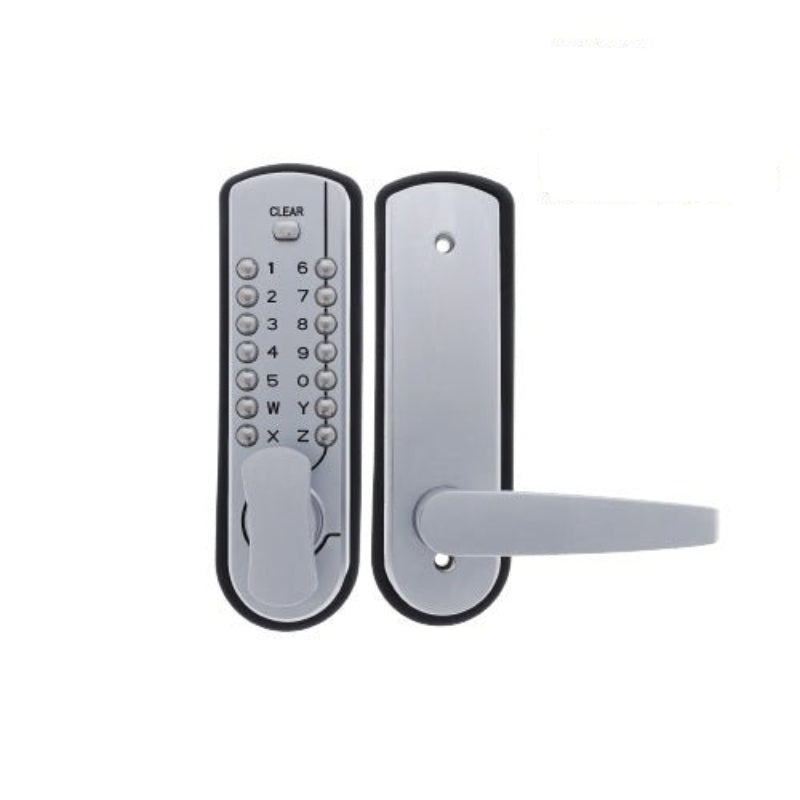

Carbine CDL7000 Heavy duty Knob with holdback lever digital, 60mm backset, Boxed, Satin Chrome

Save 17%
CarbineSKU: DAVCDL7100-HBSC-HD
filler

Price:
$358.97 $430.68

Documents

Brochure:

Carbine CDL7100-HD Customised Partner Brochure - DEA

Installation Guide:

CDL7100 HD FITTING TEMPLATE - PUB
CDL7100-2 HD FITTING TEMPLATE - PUB
CDL7100HD-KD FITTING TEMPLATE - PUB
CDL7100 HD INSTALLATION GUIDE - PUB

CDL7100-2 HD INSTALLATION GUIDE - PUB

CDL7100HD-KDSC INSTALLATION GUIDE - PUB

CDL7100-HD Installation Video - PUB

Promotional:

Carbine CDL7100-HD Promo Video - PUB
Carbine CDL7100-HD Salt Spray Tested 240 hours - PUB

Specifications:

CDL7100 HD SPEC SHEET - DEA
CDL71-TRI SPEC SHEET - PUB

CARBINE NCC 2015 E-CORE FIRE CERTIFICATE - PUB

CARBINE NCC 2015 FIRECORE FIRE CERTIFICATE - PUB

User Manual:

CDL7100-HD Changing the Code Number Video - PUB

Carbine CDL7000 Heavy duty Knob with holdback lever digital, 60mm backset, Boxed, Satin Chrome

Finish: Satin Chrome

Backset: 60mm

Packaging: Boxed

Description: Knob with holdback lever

Inner box qty: 1

Box quantity: 1

Carbine CDL7100-HD Heavy Duty Digital

The CDL7-HD series is over 4 x mechanically longer lasting than the standard CDL7 series. With a new easy to use heavy duty code change system on the rear of the pad, higher quality harder wearing internal code components, and new heavy duty cryptographic elements made out of stainless steel instead of zinc, the CDL7-HD series is designed to maximise product life and code pad performance.

The CDL7 HD series is available in various models to suit lockset, dual knob, and mortice lock applications.

  • Weather resistant
  • Salt spray tested to 240 hours
  • Higher quality, harder wearing internal code components
  • New heavy duty cryptographic elements made out of stainless steel instead of zinc
  • Improved product life & code pad performance
  • For use in high volume commercial areas
  • Cycle tested and exceeds 100,000 openings
  • Ideal for storerooms and similar area
  • External turn knob

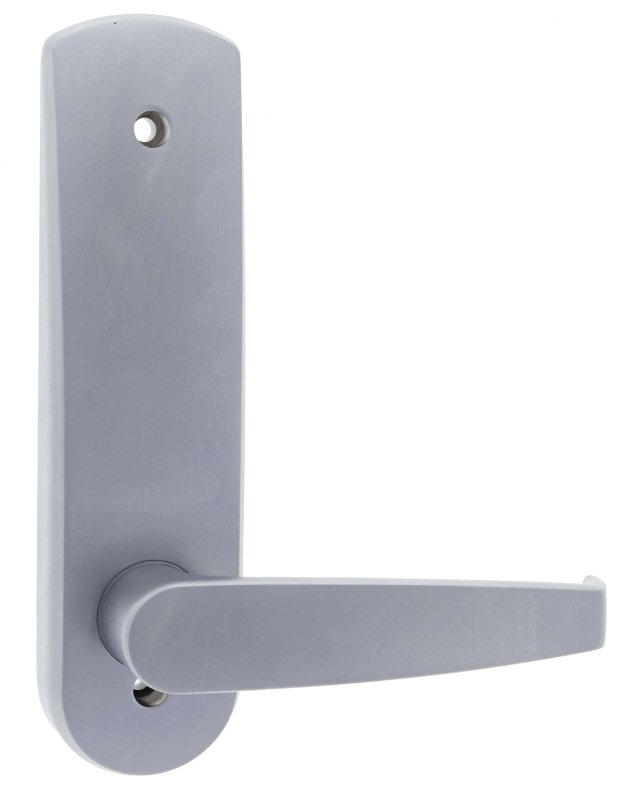

  • Internal lever BCA compliant
  • Clutching external large turn or BCA compliant lever
  • 2 hour fire rating for CDL7100-HD model with use of the supplied latchset
  • Backset is 60mm standard, 70mm and 127mm backsets available as an option
  • Handles are reversible to allow fitting to left or right handed opening doors
  • Easy to change user codes via removal of the back cover
  • Easy grip outer knob that is larger than many other similar digital products
  • Larger body footprint allows retrofit to cover lockset holes
  • Suits new and retrofit applications with everything provided in the package. Retrofits for various models including Carbine NK2000 & Lockwood 530 digital

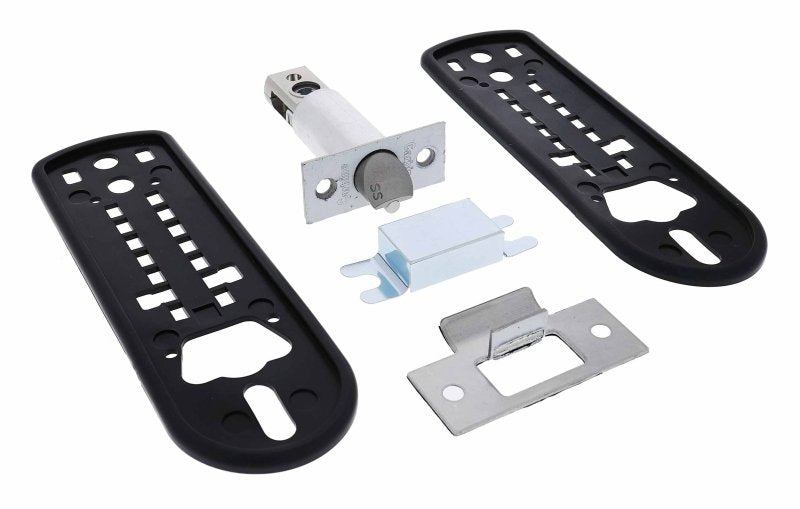

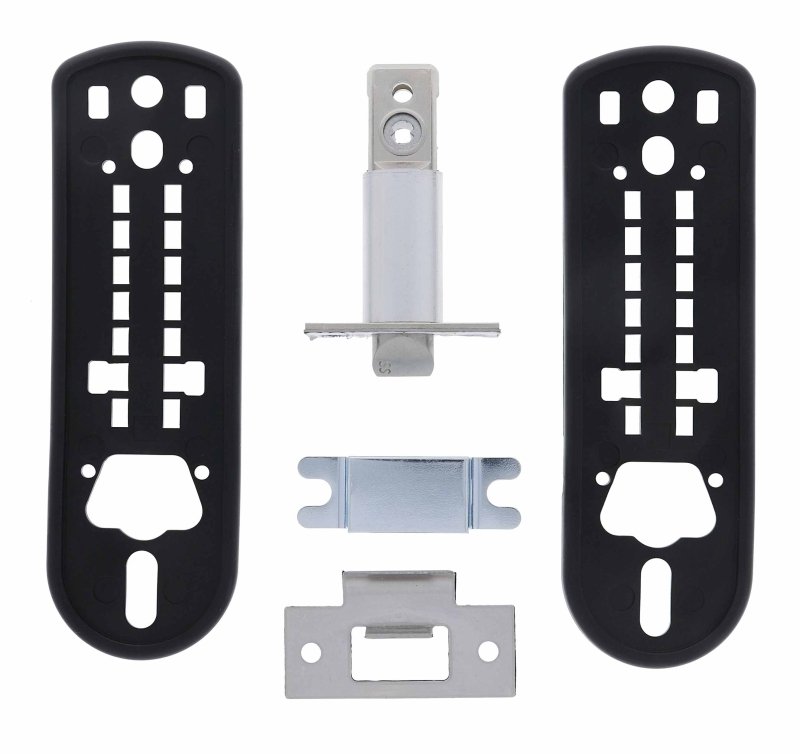

  • Includes all components and instructions for fitting and combination changing
  • Available in the finish of satin chrome
  • Suits door thicknesses 32mm to 54mm
  • Display blocks & display packaged models available
