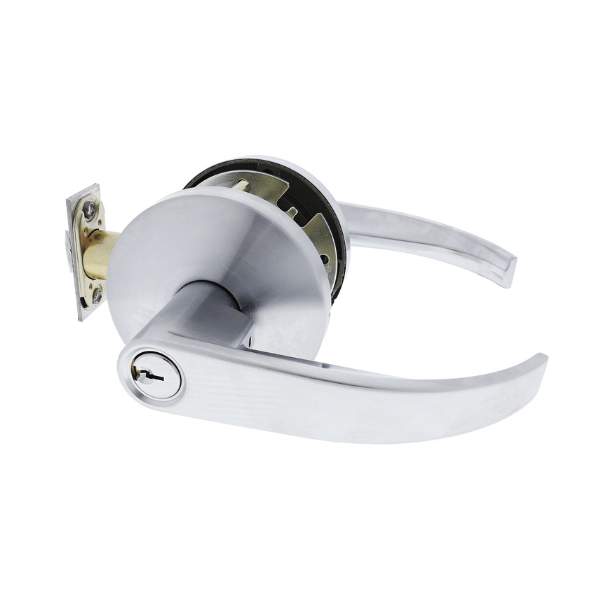

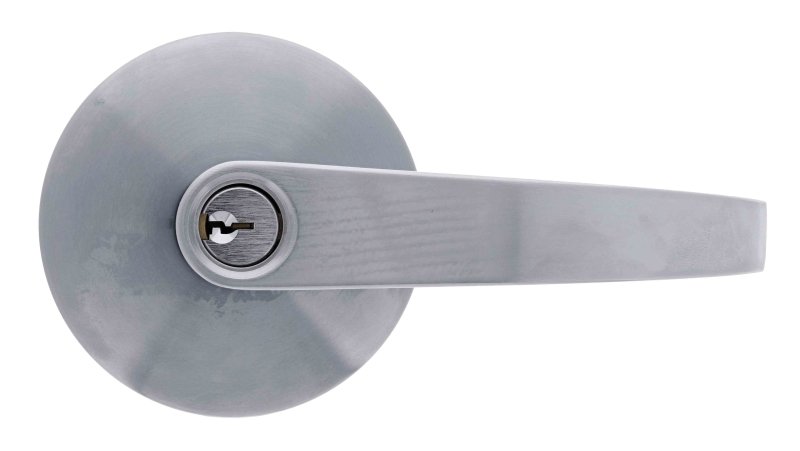

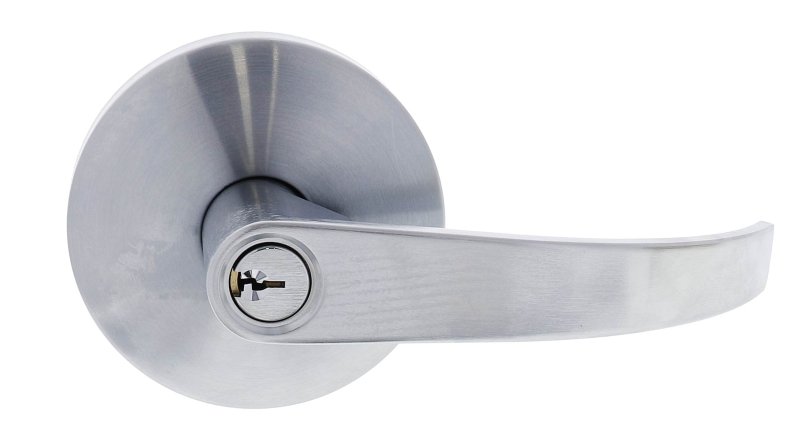

Carbine Doncaster 7000 Cylindrical Entrance set, Disability Lever, 70mm backset, C4 Keyed to Differ, Boxed, Brushed Satin Chrome

Save 17%
CarbineSKU: DAVPD7000-L1
filler

Price:
$134.41 $161.26

Documents

Brochure:

Carbine PD7000 Customised Partner Brochure - DEA

Installation Guide:

PD7000 INSTALLATION GUIDE - PUB

PD7000 50MM THICK DOOR SPACER INSTALLATION - PUB

PD7075 INSTALLATION GUIDE - PUB

PD7000 Installation (Video) - PUB

Specifications:

PD7000 SERIES PYROPANEL MAXI FIRE CERTIFICATE - PUB
CARBINE PD7000 SPEC SHEET - PUB
CARBINE PD7000-L1 SPEC SHEET - DEA
CARBINE NCC 2015 E-CORE FIRE CERTIFICATE - PUB

CARBINE NCC 2015 PYROPANEL FR FIRE CERTIFICATE - PUB

CARBINE NCC 2015 FIRECORE FIRE CERTIFICATE - PUB

Carbine Doncaster 7000 Cylindrical Entrance set, Disability Lever, 70mm backset, C4 Keyed to Differ, Boxed, Brushed Satin Chrome

Function: Entrance

Finish: Brushed Satin Chrome

Backset: 70mm

Type: Disability Lever

Keyway: C4

Packaging: Boxed

Keying: Keyed to Differ

Inner box qty: 1

Box quantity: 8

Carbine Doncaster PD7000 Cylindrical Leverset

Distinctive by its solid look and large rose, the Carbine Doncaster PD7000 series have served the commercial market place successfully for many years and have gained a reputation for being a proven performer in that time.

  • Fire rated for up to 4 hours
  • Tested to 400,000 openings no failures
  • Cylindrical fixing
  • Suits KeyLine LKW9 (Silca LW5) profile
  • Cylinder is a 6 pin PD style brass cylinder
  • Spare cylinder available for TES5 to suit Gainsborough keyway CLAIC-TES5
  • Supplied standard with a 70mm backset, 60mm available upon request and an extension tube to extend to 127mm is available
  • Square shaped lever handles with a strong lever return spring
  • 85mm wide rose with two locating fixing holes to prevent the leverset from spinning
  • Suitable for doors 35mm - 50mm in thickness extension kit is provided to make it suit the 50mm
  • Concealed fixing
  • Stainless steel latch bolt with a 12mm projection
  • Optional choice of a standard or clutching function, the clutching model features an operation where the outside handle still moves when locked, ideally to prevent lever damage from forced entry
  • L1 lever design is compliant with BCA codes and AS1428
