Documents
Brochure:
![]() |
Installation Guide:
![]() |
PE3000 INSTALLATION GUIDE - PUB PE3000 Installation (Video) - PUB |
Specifications:
![]() |

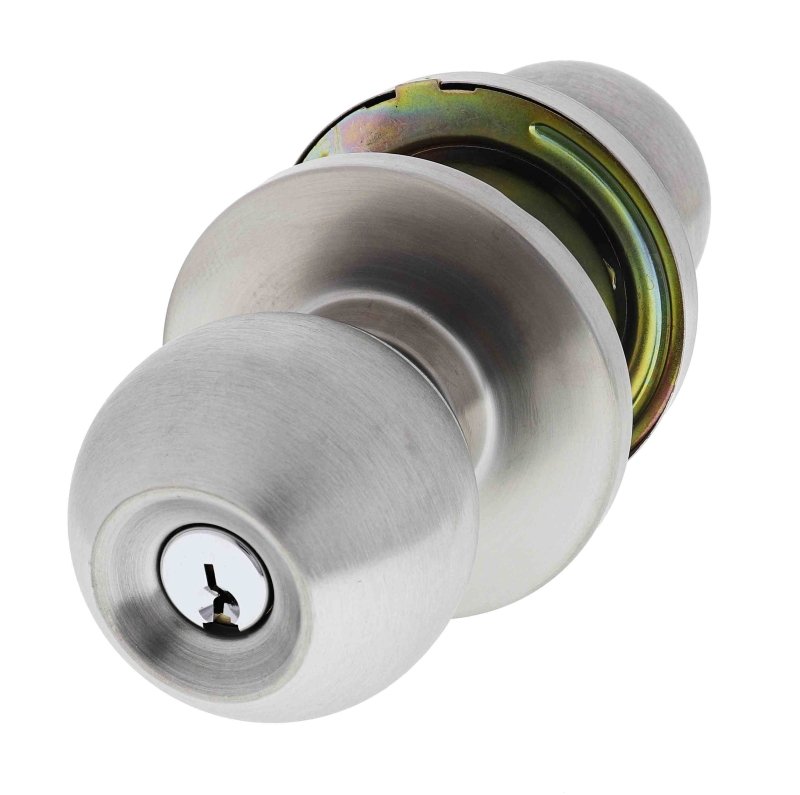

Carbine Epsom 3000 Cylindrical Entrance set, 70mm backset, C4 Keyed to Differ, Boxed, Satin Stainless Steel
Function: Entrance
Finish: Satin Stainless Steel
Backset: 70mm
Keyway: C4
Packaging: Boxed
Keying: Keyed to Differ
Inner box qty: 1
Box quantity: 18
Carbine Epsom PE3000 Cylindrical Knobset
The Carbine Epsom series of knobsets has been praised for its versatility, reliability, ease of use, and ease of installation. It is a high grade commercial knobset which has a cylindrical fixing. Distinctive by its solid round knob shaped look and large rose, they are a very popular choice in the commercial market and have gained a reputation for being a proven reliable performer.
- Fire rated for up to 2 hours
- Tested to 400,000 cycles no failures
- Cylindrical fixing
- Supplied with 70mm backset as standard with a 60mm available as an option. Display pack version is 70mm only.
- 127mm backset extension is available if required
- Suitable for doors 35mm - 45mm in thickness although used successfully on doors up to 50mm thick
- Especially made to take restricted in line and nearly all higher security restricted cylinders
- Suits KeyLine LKW9 (Silca LW5) profile
- Cylinder is a 6 pin PD style brass cylinder
- Spare cylinder available for TES5 to suit Gainsborough keyway CLAIC-TES5
- Has a rose diameter of 75mm
- Spacing rings or plates are available for use on thinner doors
- Supplied with concealed fixing
- Stainless steel latch bolt with a 12mm projection
- Accessories such as rebate kits, internal levers and spare parts available
