Documents
Brochure:
![]() |
Residential Surface Mounted Deadbolts Partner Brochure - DEA |
Specifications:
![]() |

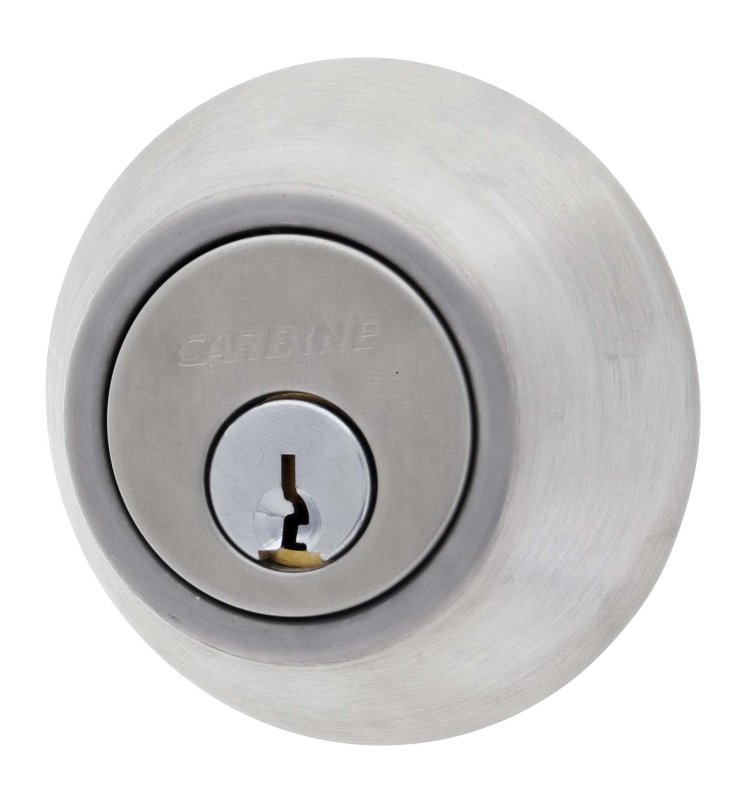

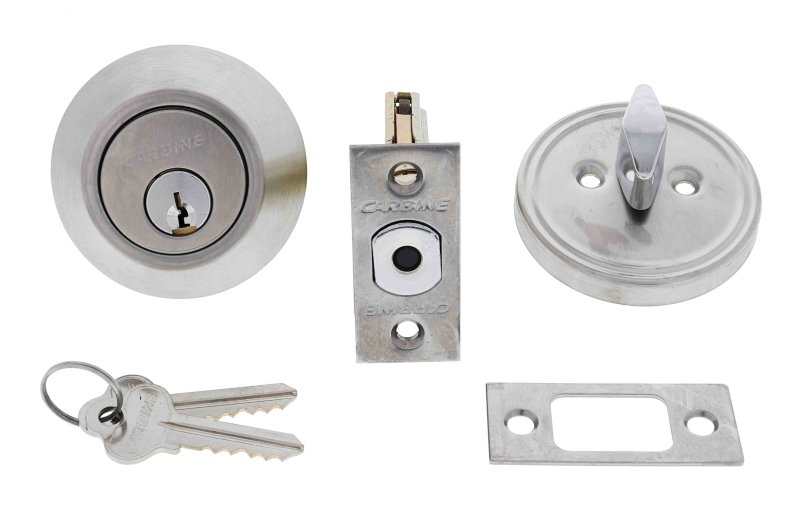

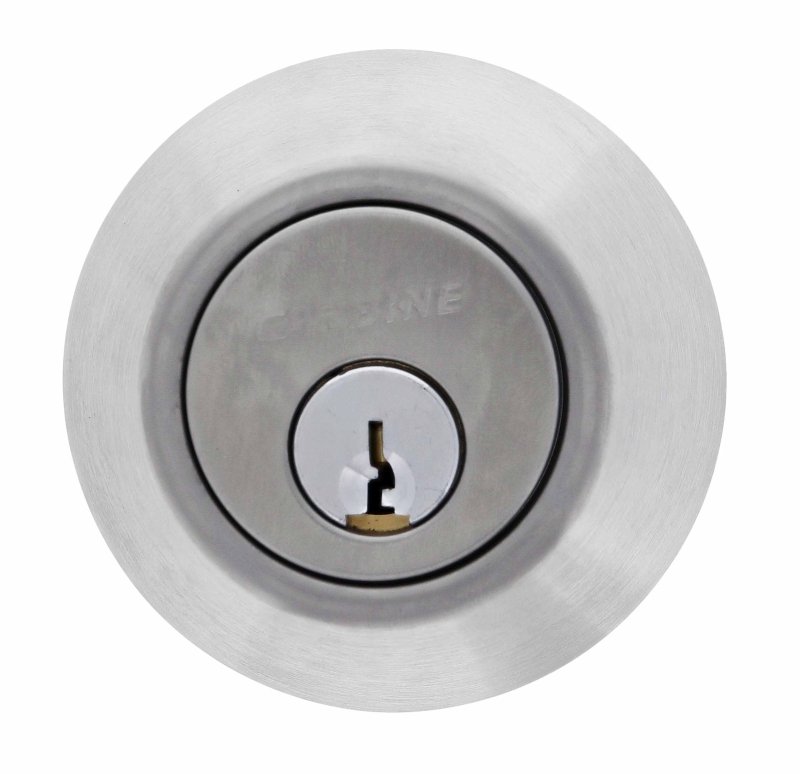

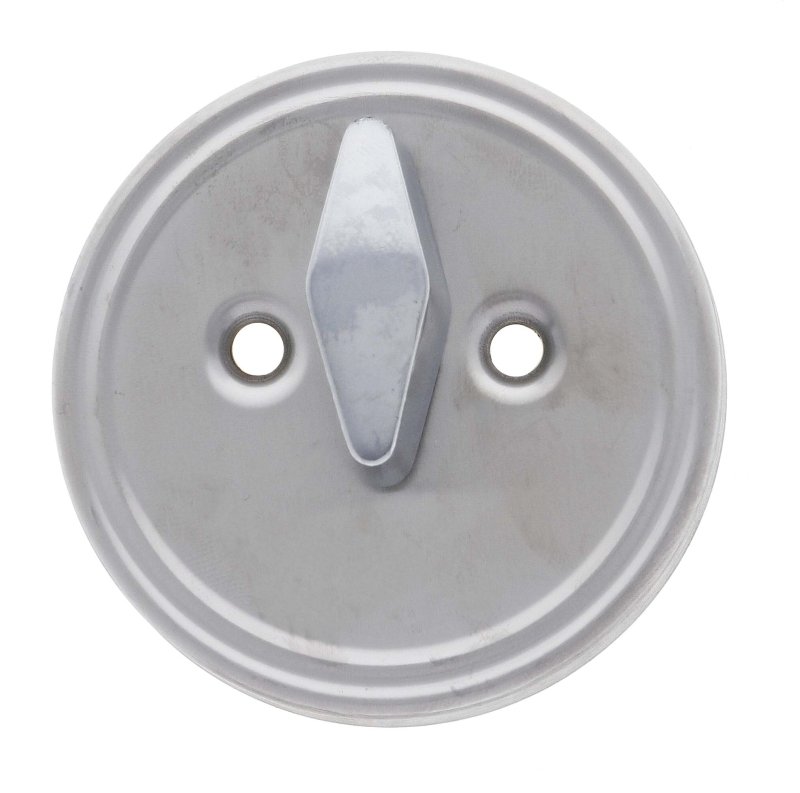

Carbine LB Residential Series Standard Cylinder and Turn Deadbolt, 60-70mm backset, C4 Keyed to Differ , Boxed, Satin Stainless Steel
Function: Cylinder and Turn
Finish: Satin Stainless Steel
Backset: 60-70mm
Keyway: C4
Packaging: Boxed
Keying: Keyed to Differ
Model: Standard
Inner box qty: 1
Box quantity: 24
The Carbine residential series of surface mounted deadbolts provides installers and users the strength, versatility, and various finishes to suit both function & style. With its easy installation, multiple finishes, and single or double cylinder models, the Carbine residential grade of surface mounted deadbolts will complement existing or new doors. Tested to residential ANSI Grade 3 standard.
- Screw fixing
- Removable brass 6 pin PD style cylinder (keyed to a 5 pin key)
- Suits Keyline LKW9 (Silca LW5) profile
- Fully rekeyable to either simple keying alike or master keying
- Able to accept a wide range of restricted barrels
- Has a rose diameter of 65mm
- Made to fit doors with a thickness between 35mm - 45mm
- Extended tailpiece adaptor set available separated for 45-57mm doors
- Adjustable 60-70mm backset
