IVER BALTIMORE RETURN DOOR LEVER HANDLE ON ROUND ROSE & SQUARE ROSE - CUSTOMISE TO YOUR NEEDS

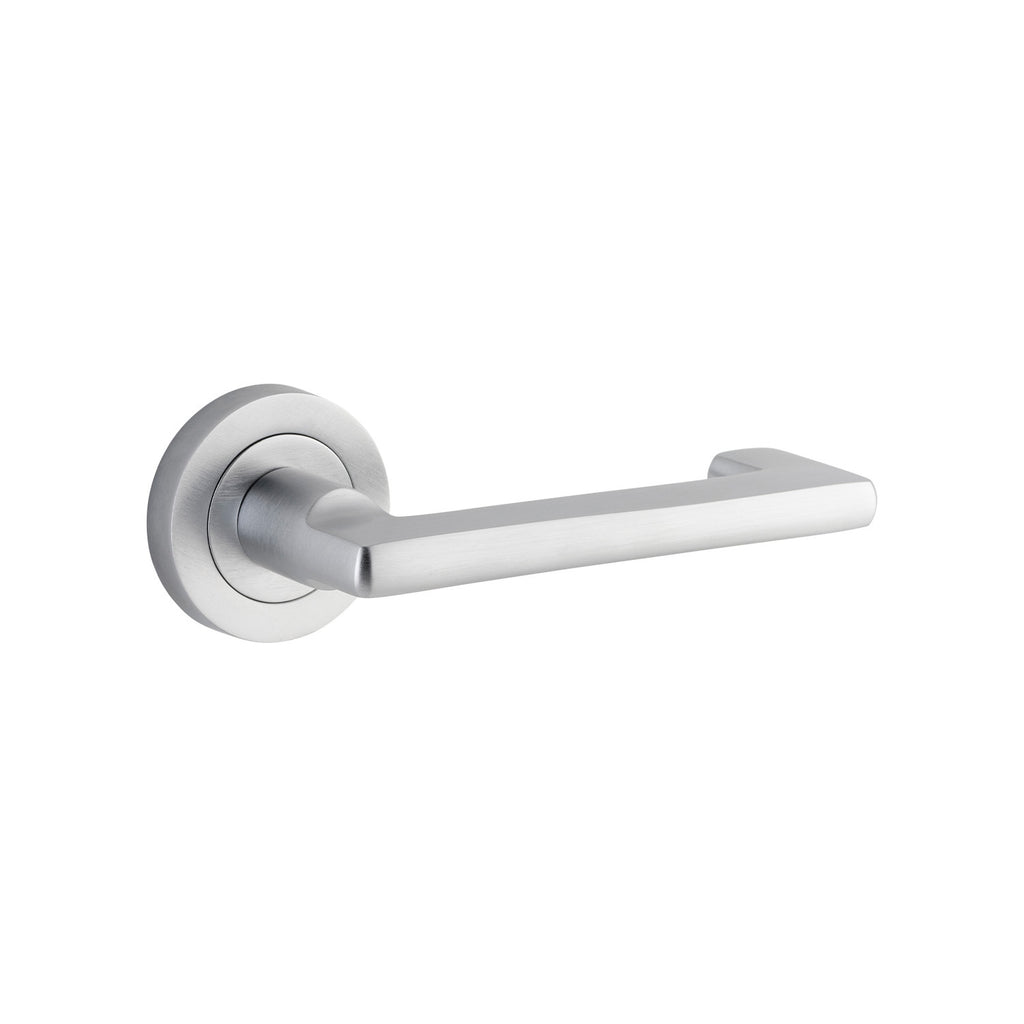

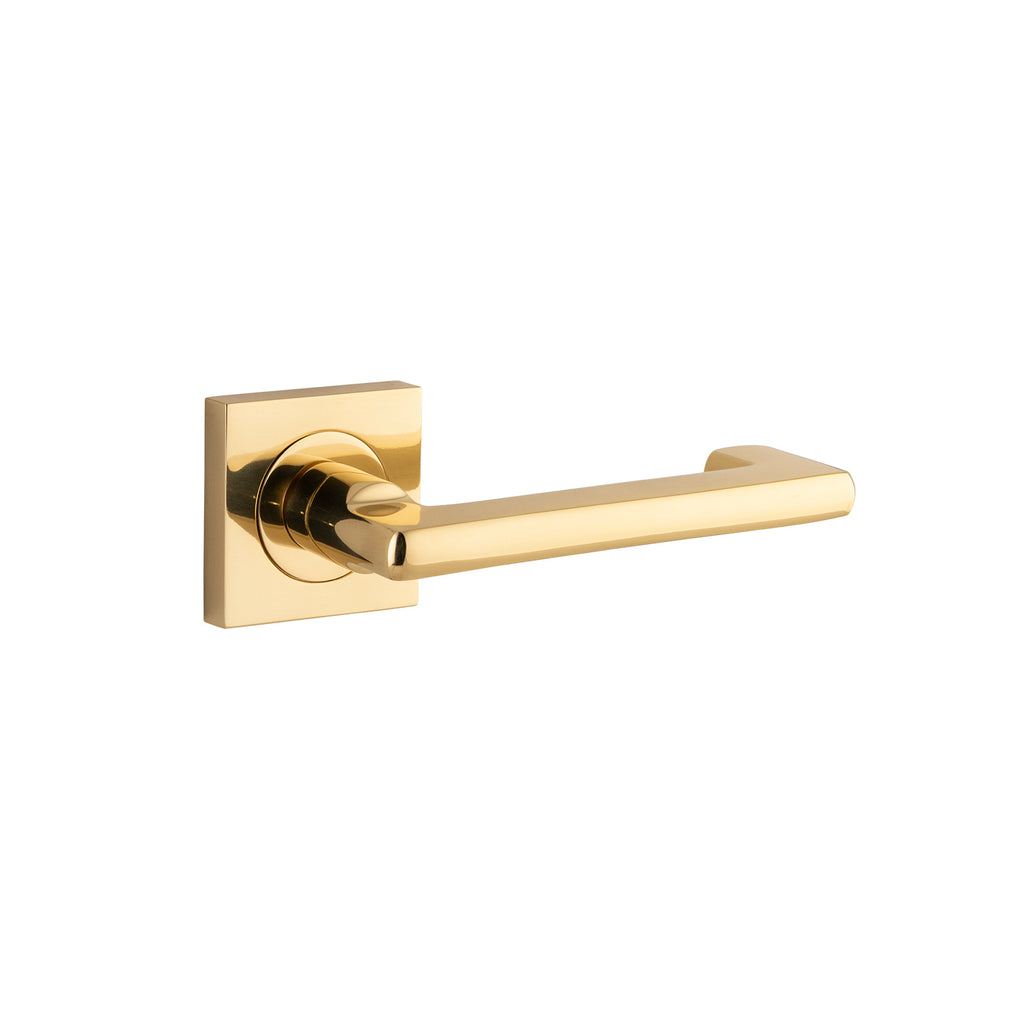

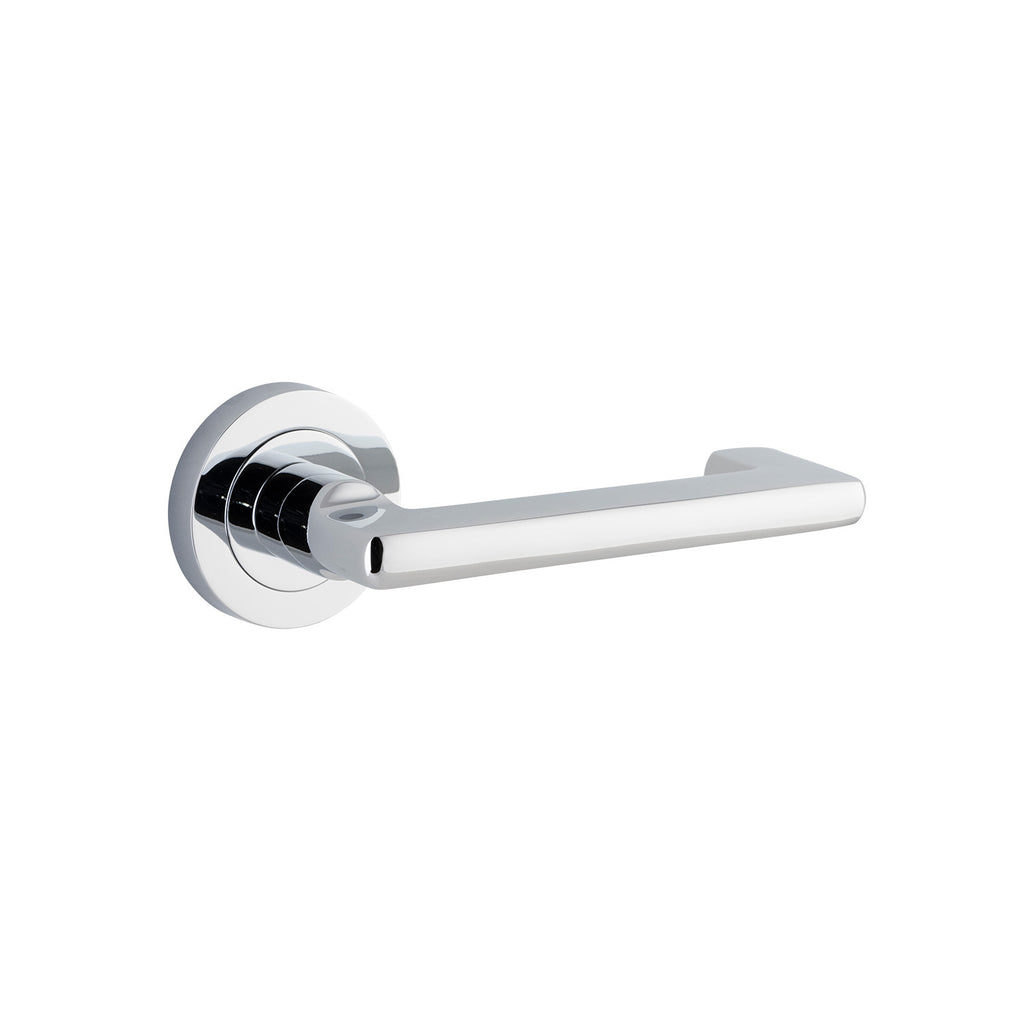

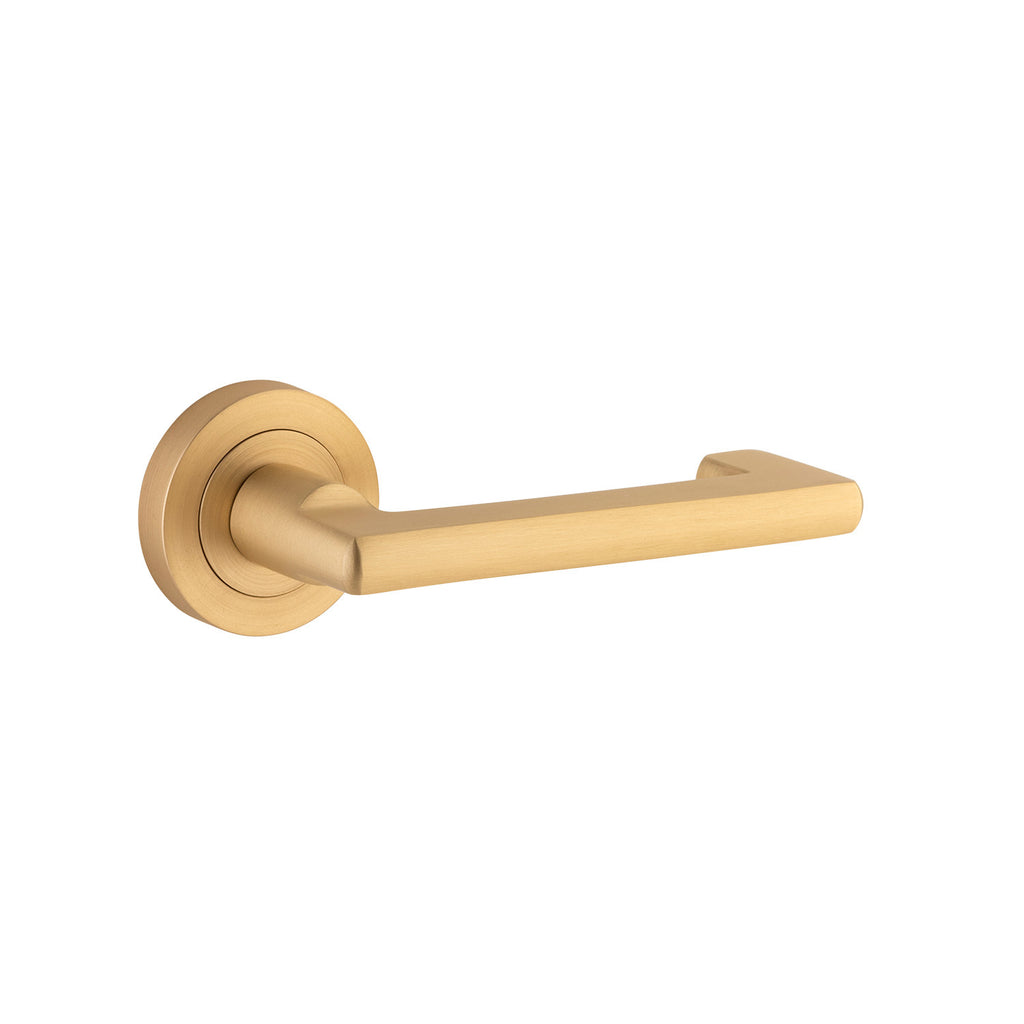

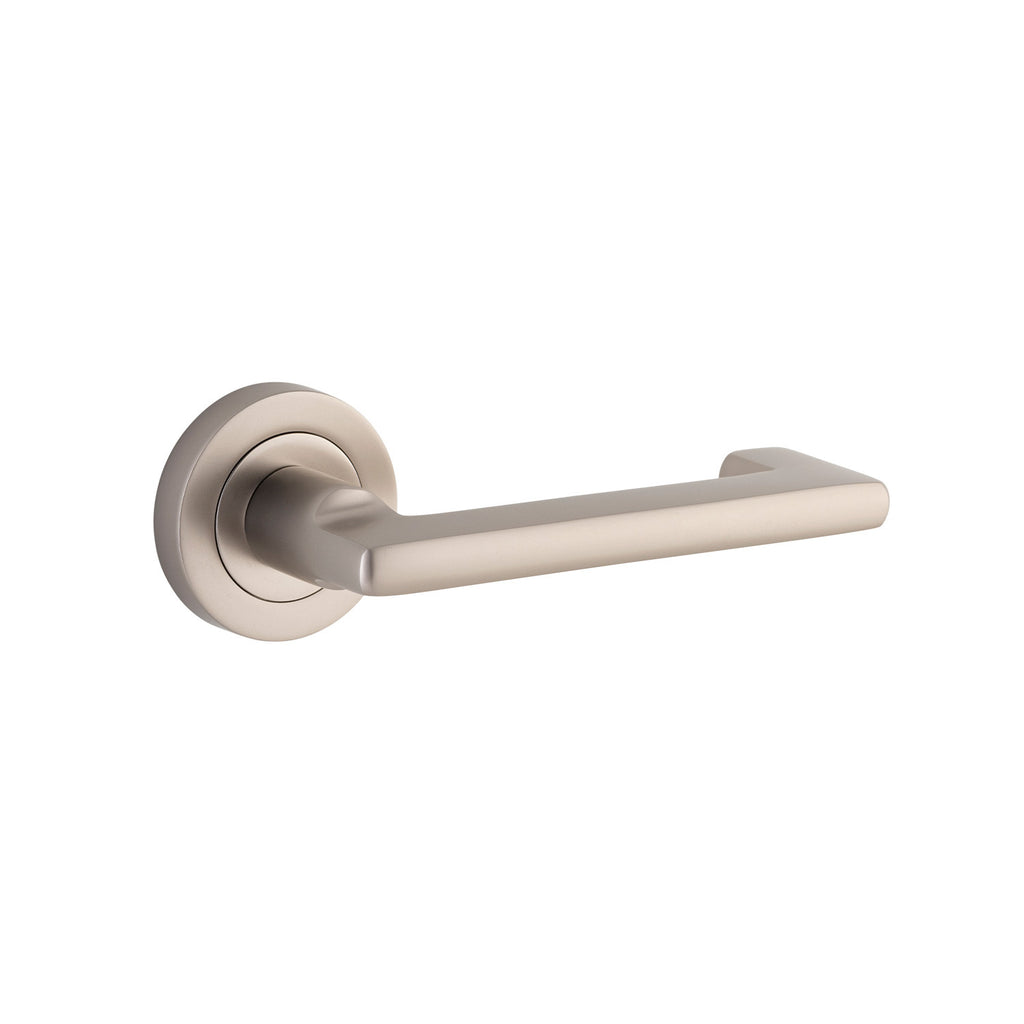

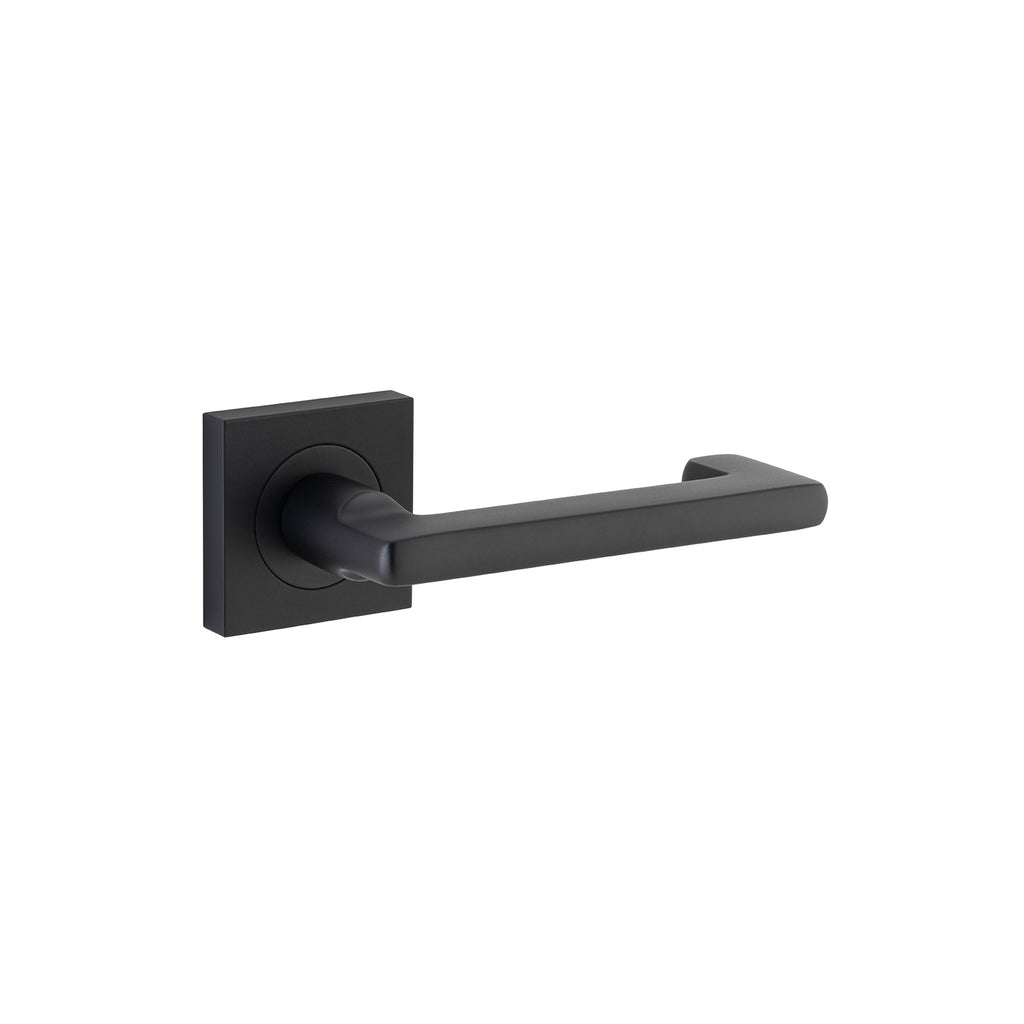

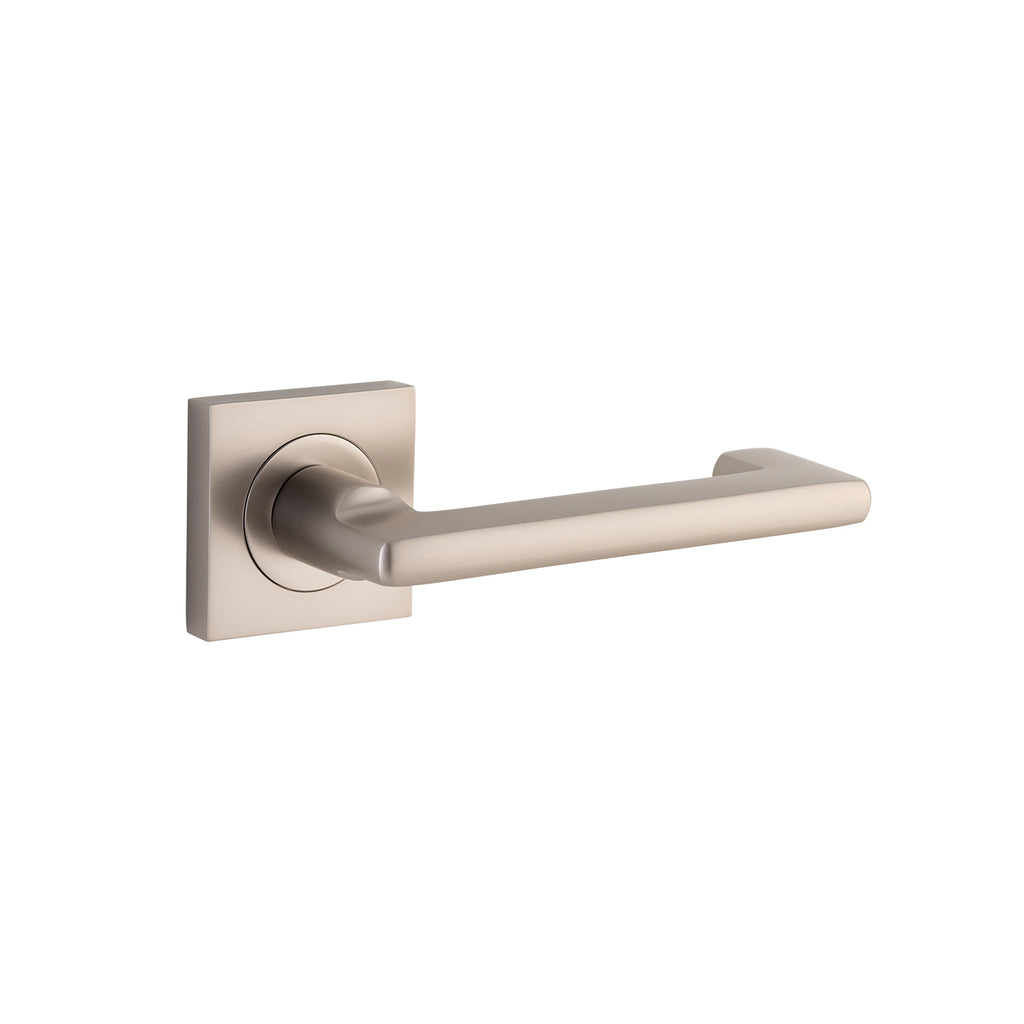

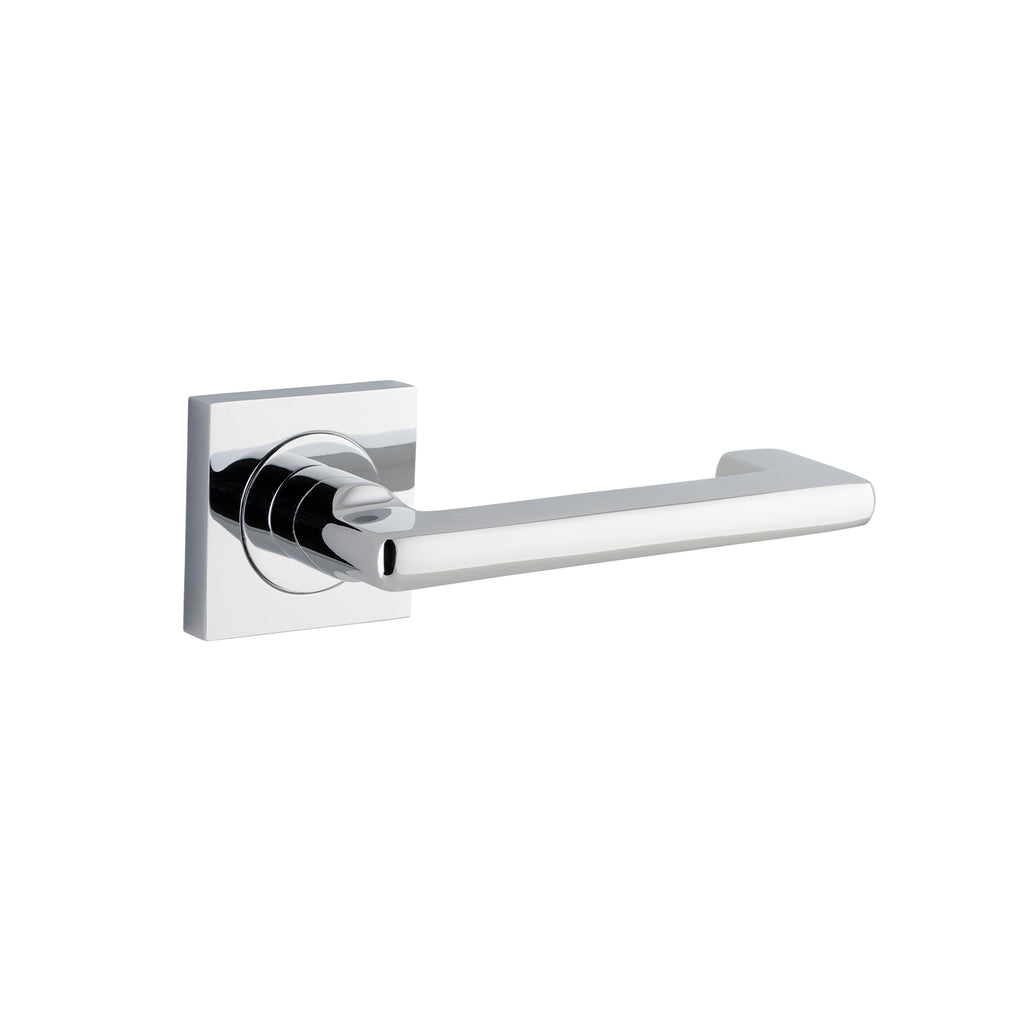

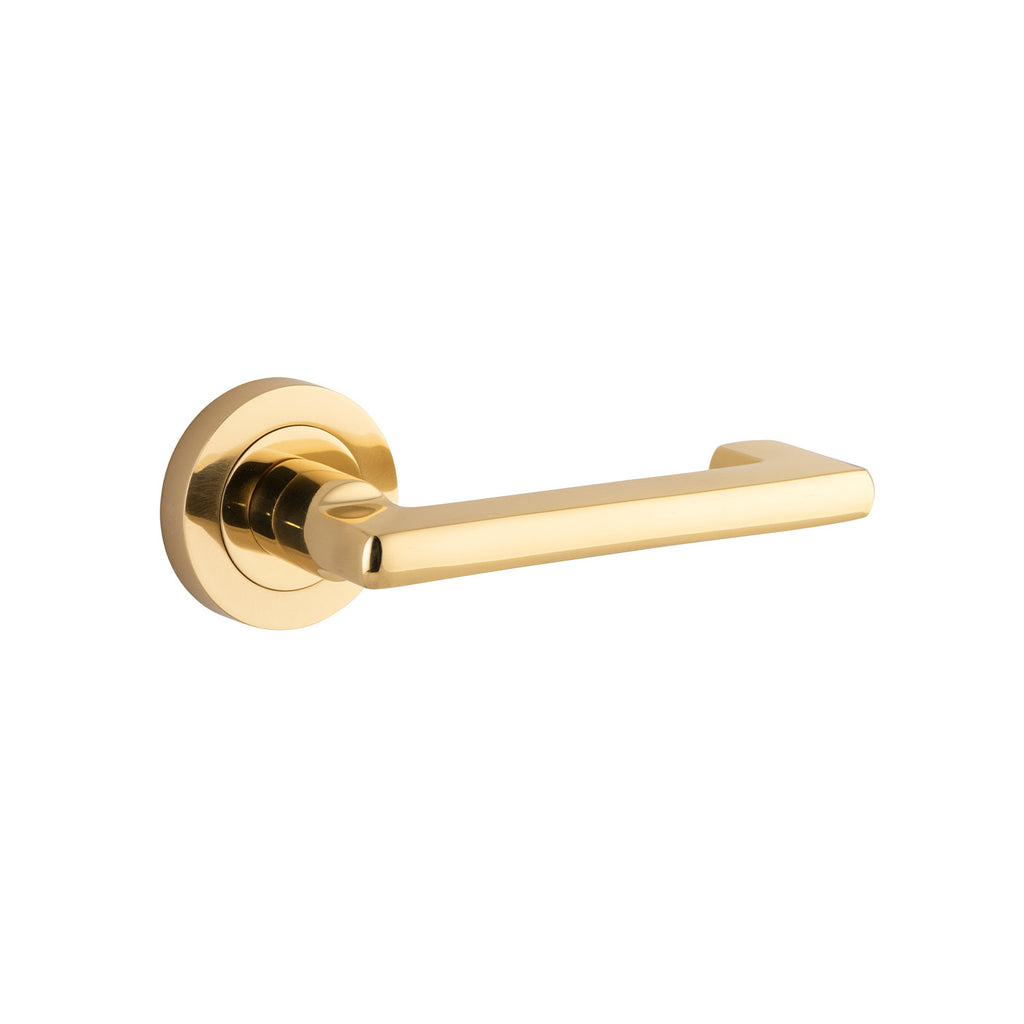

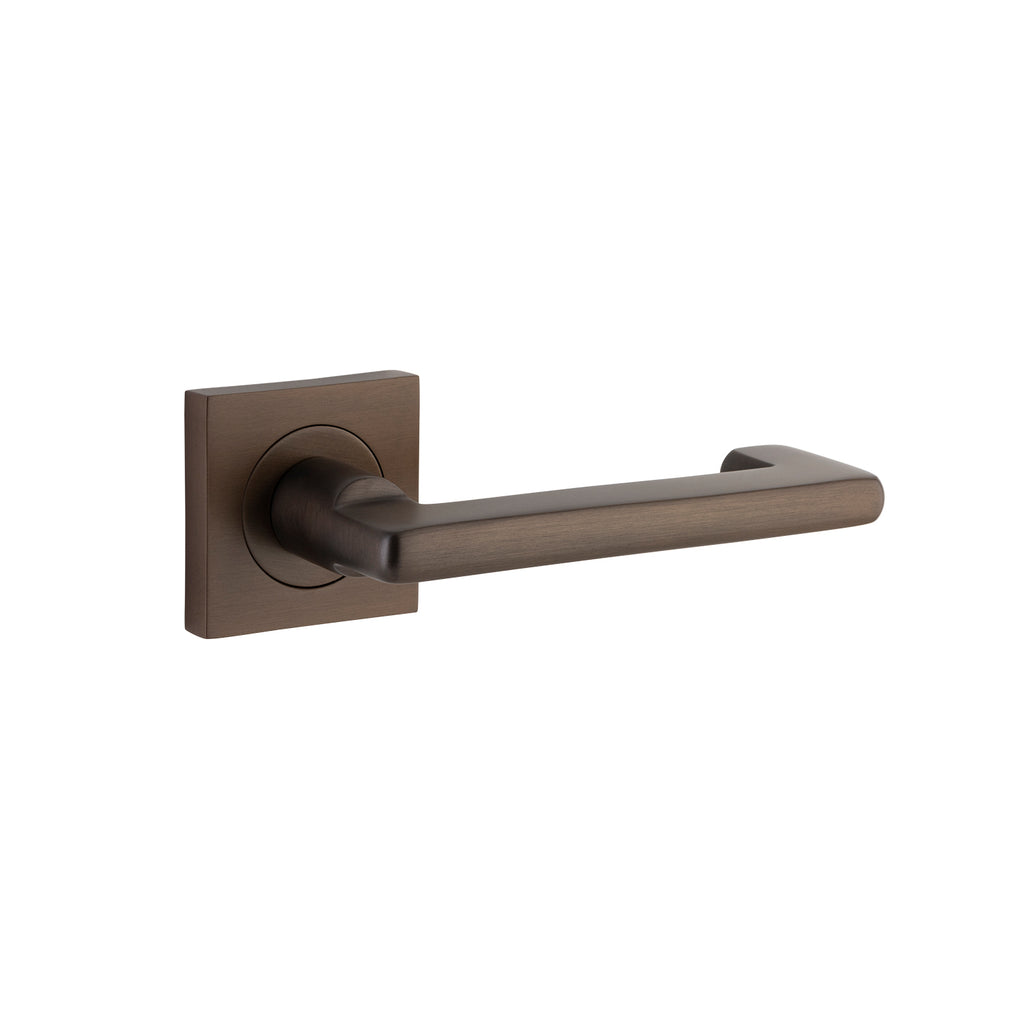

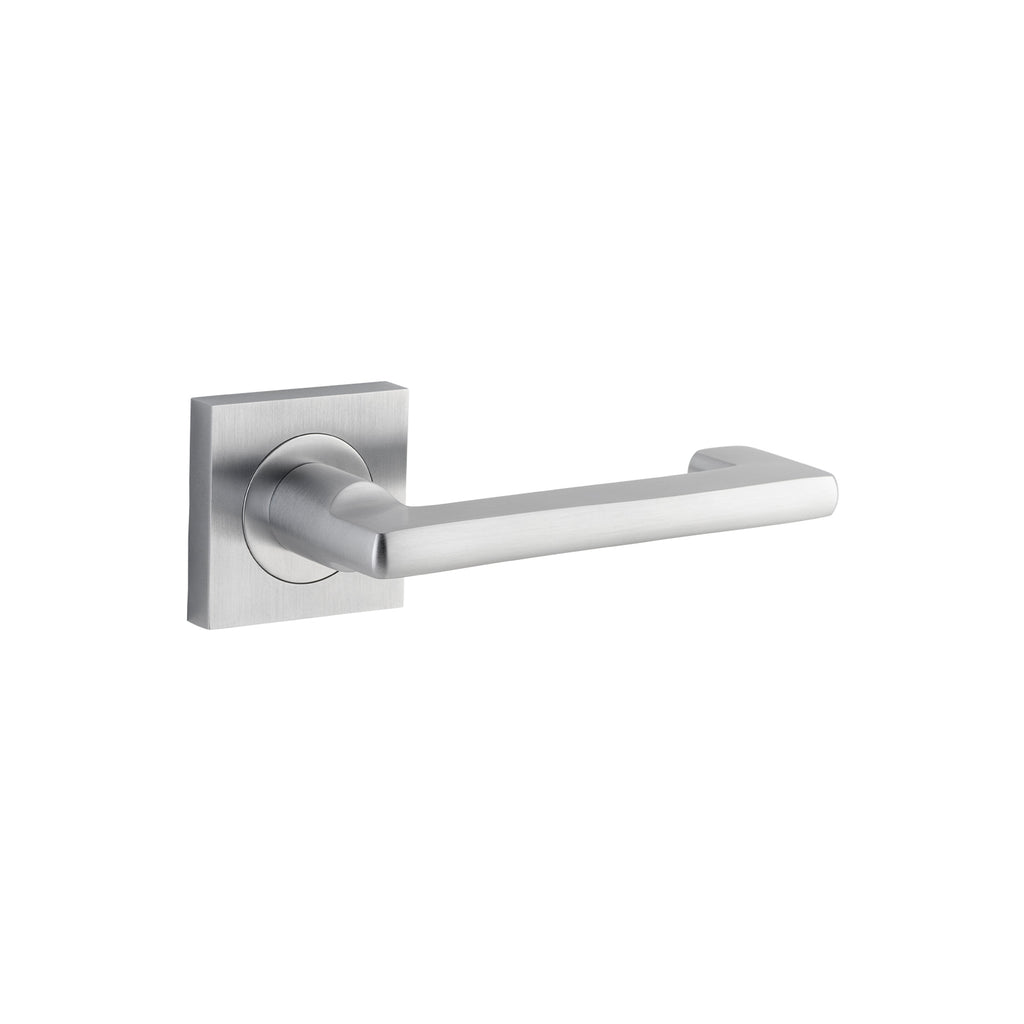

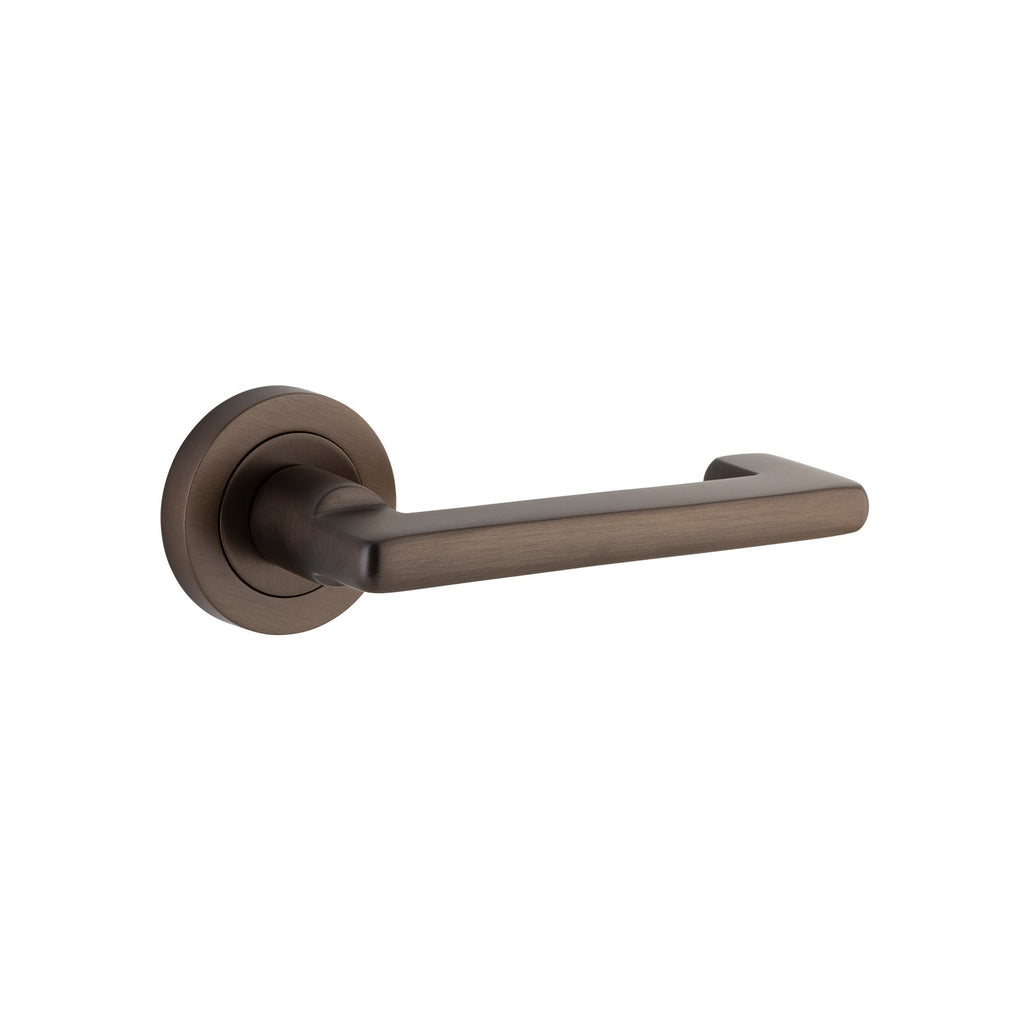

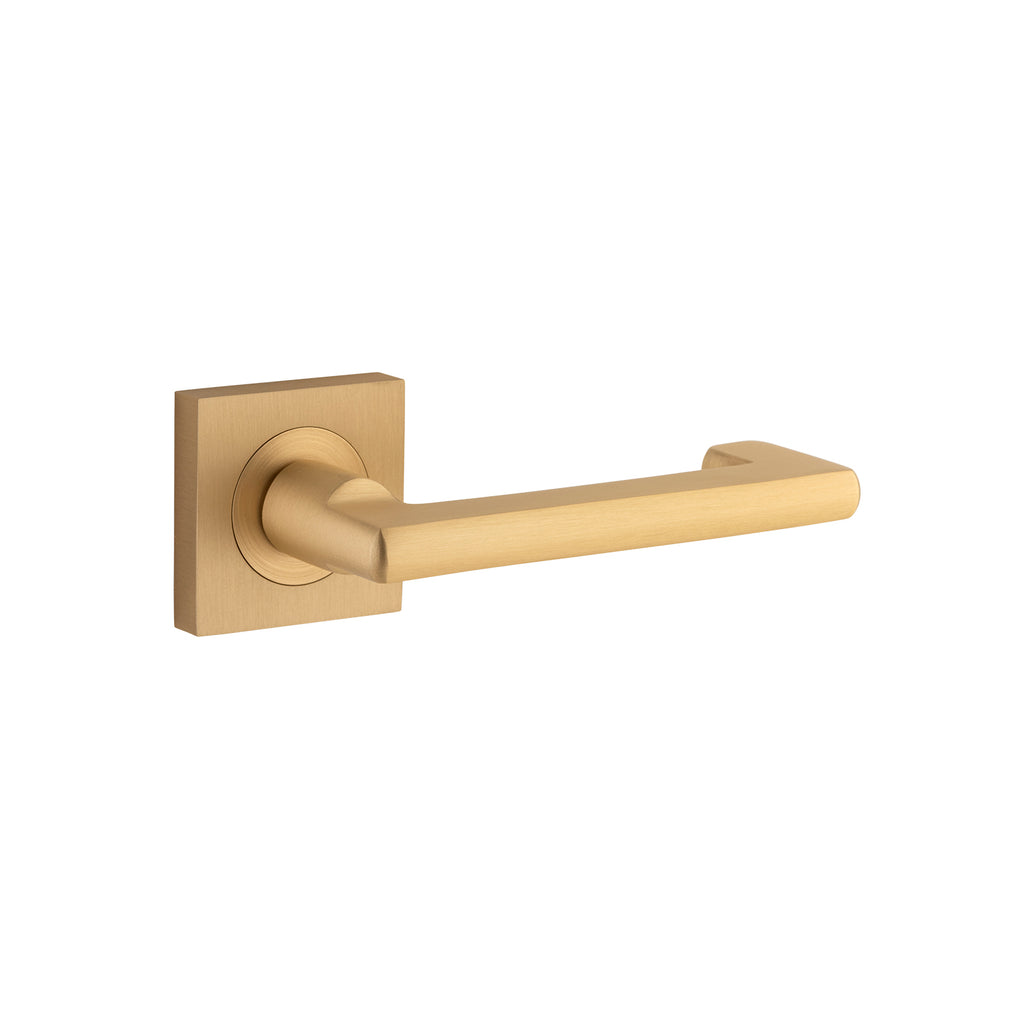

Iver Baltimore Return Door Lever on Round Rose & Square Rose

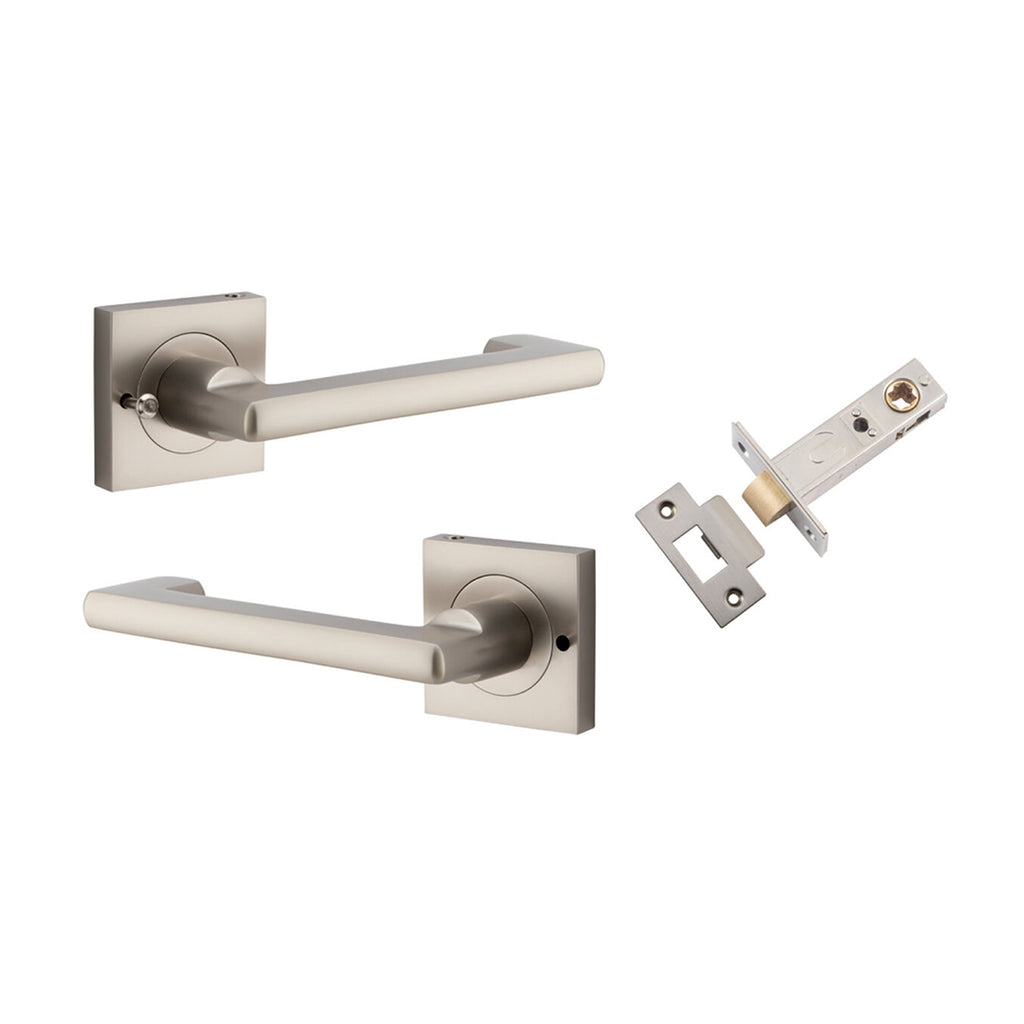

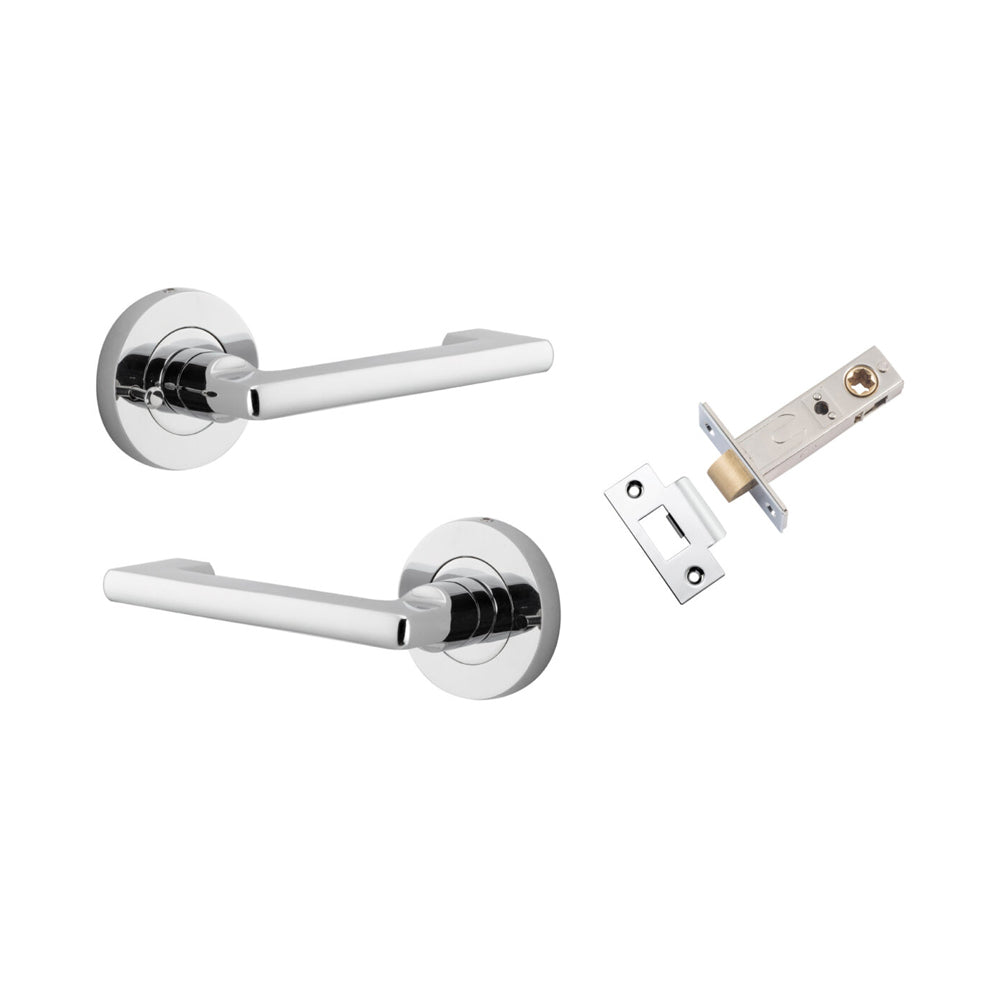

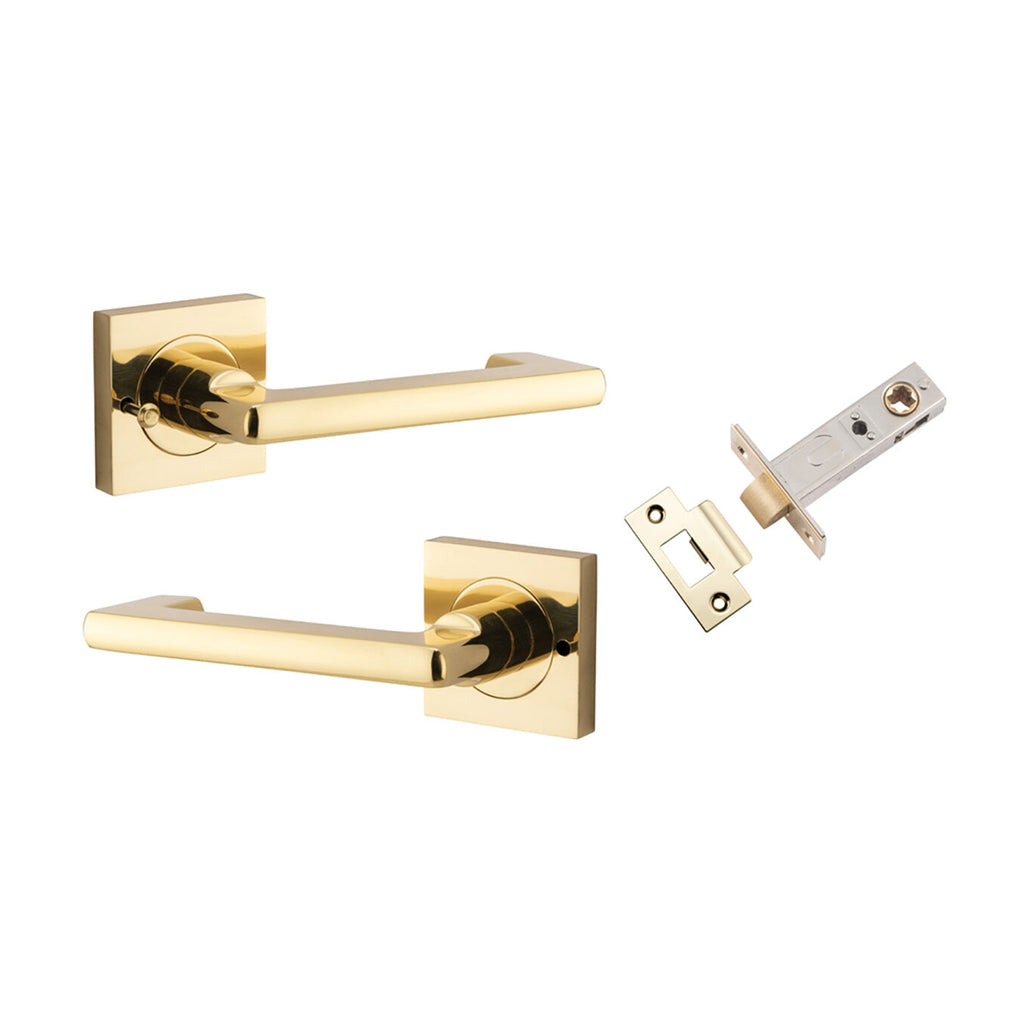

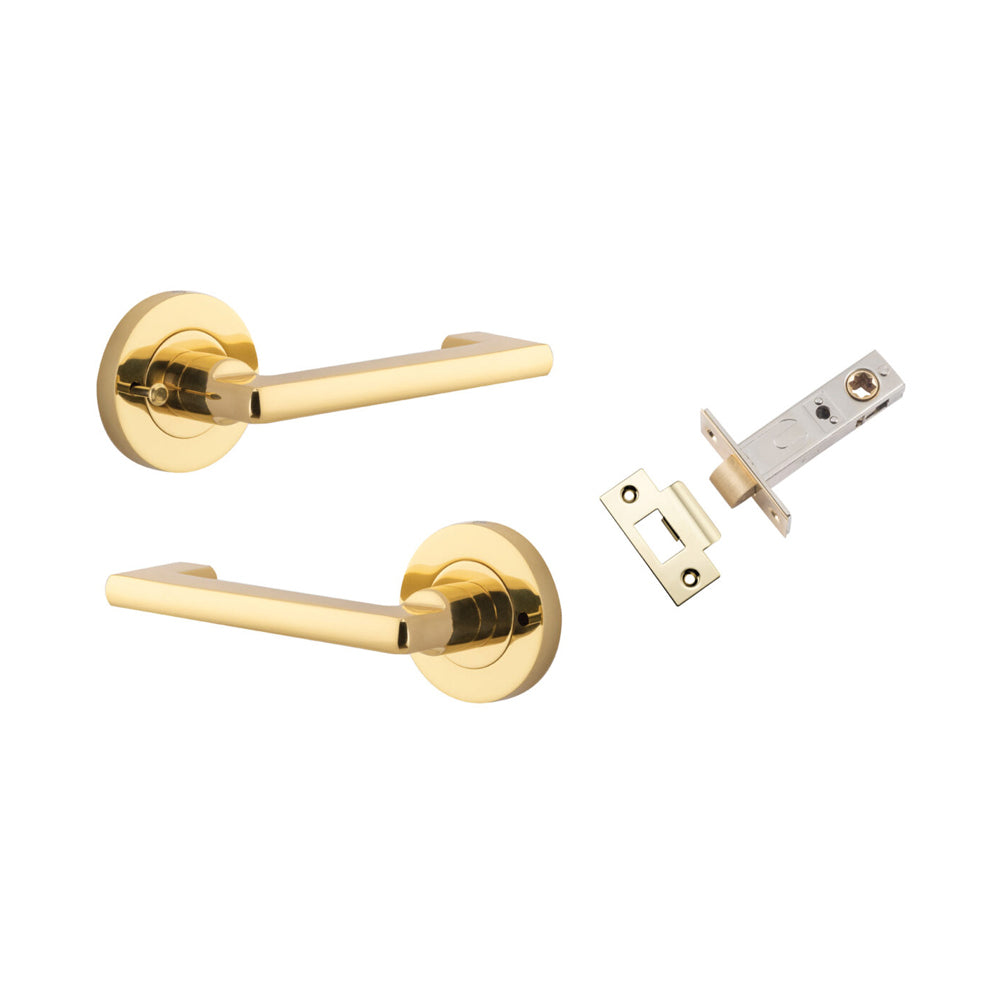

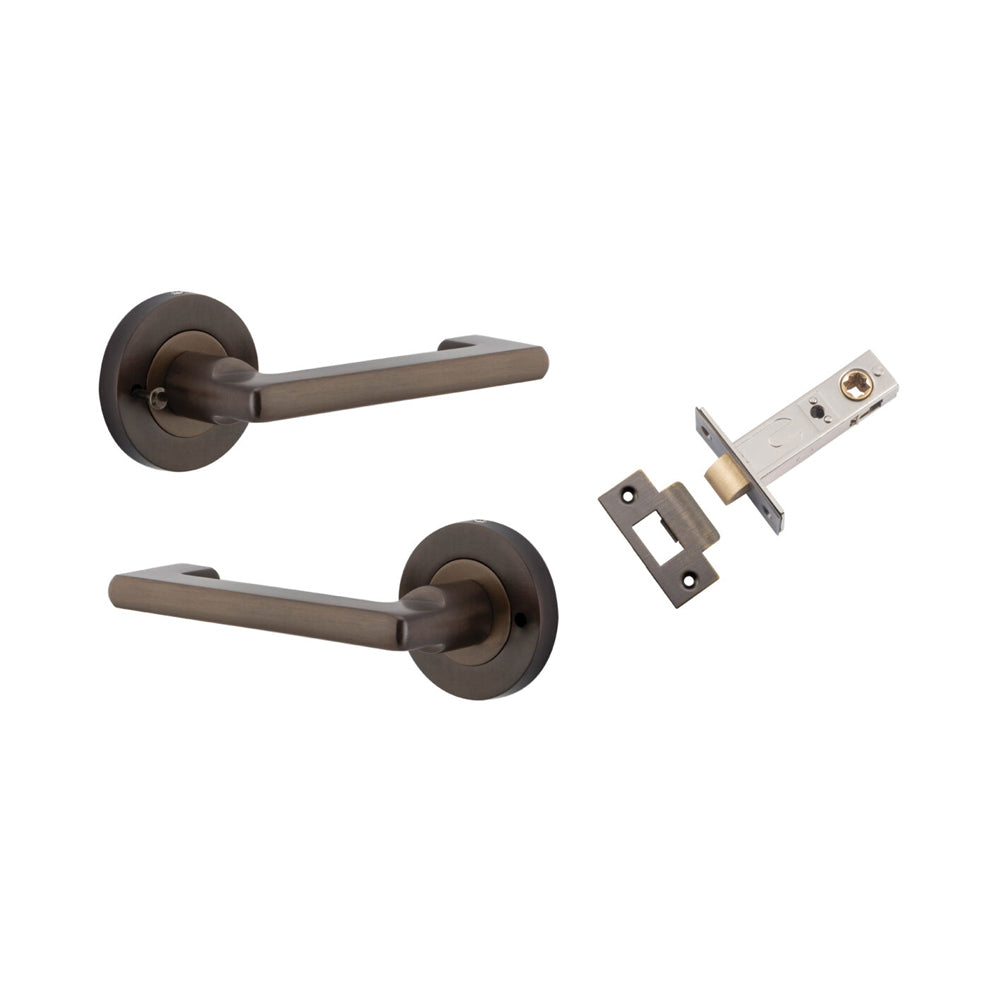

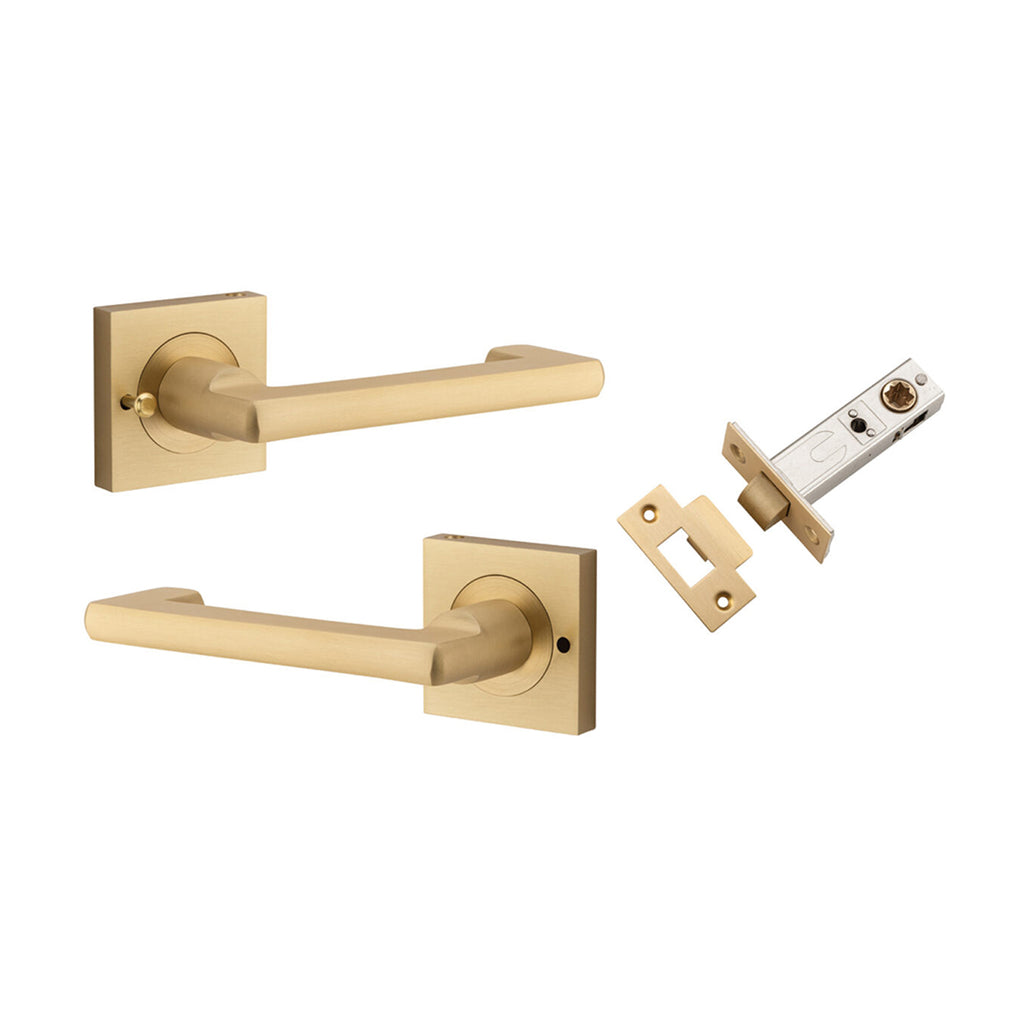

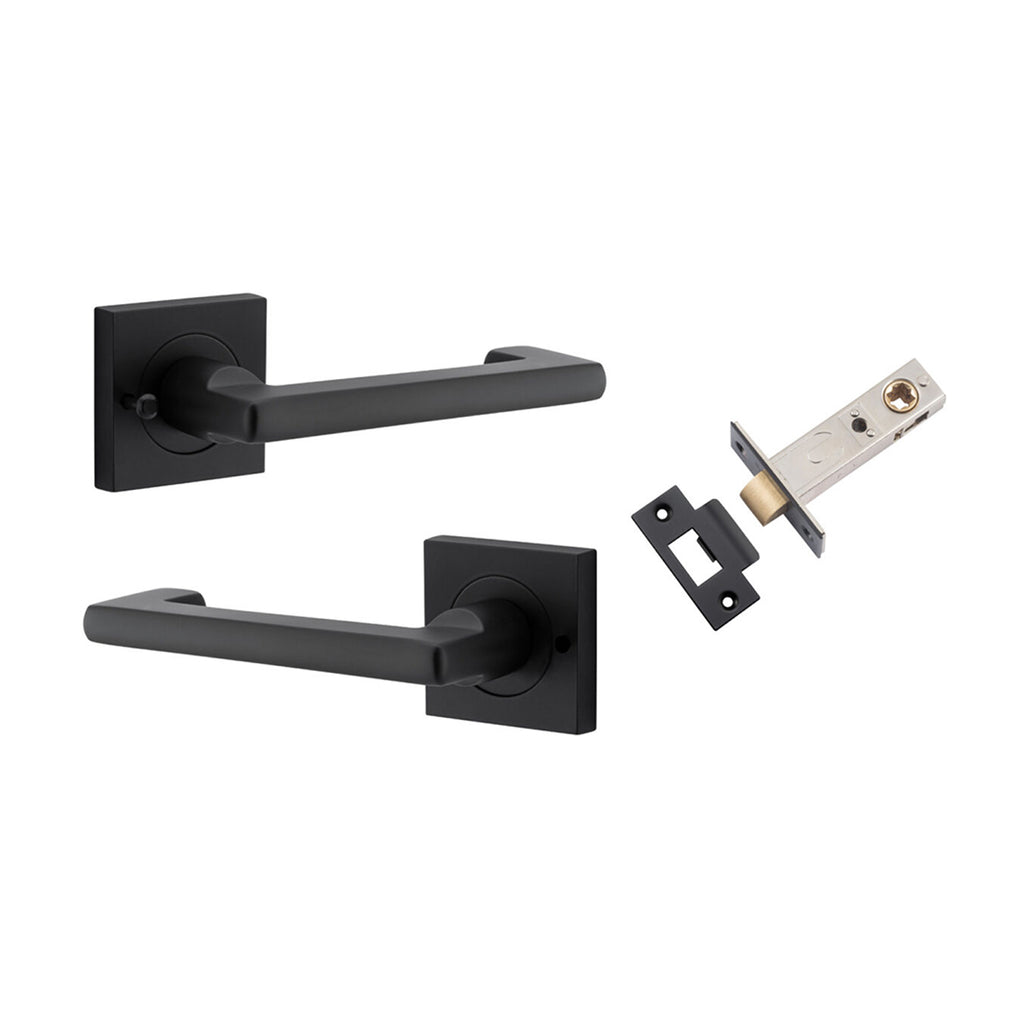

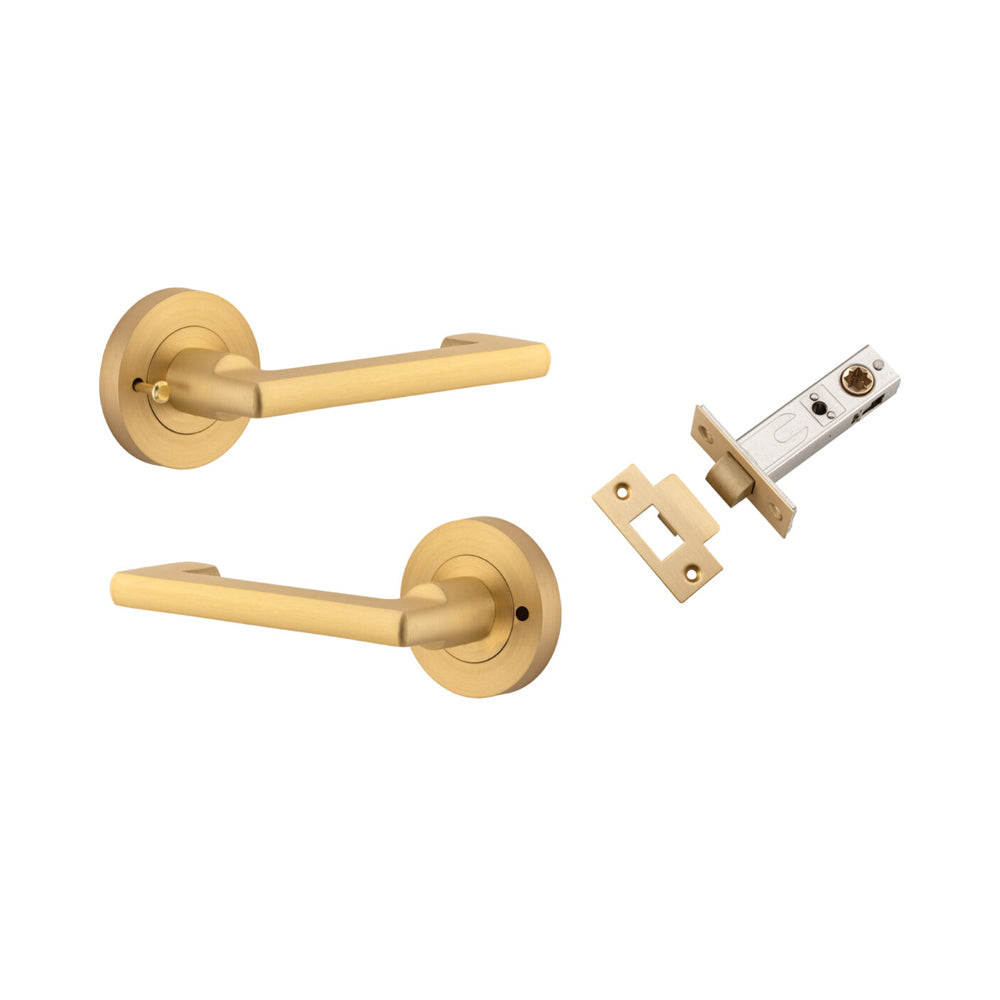

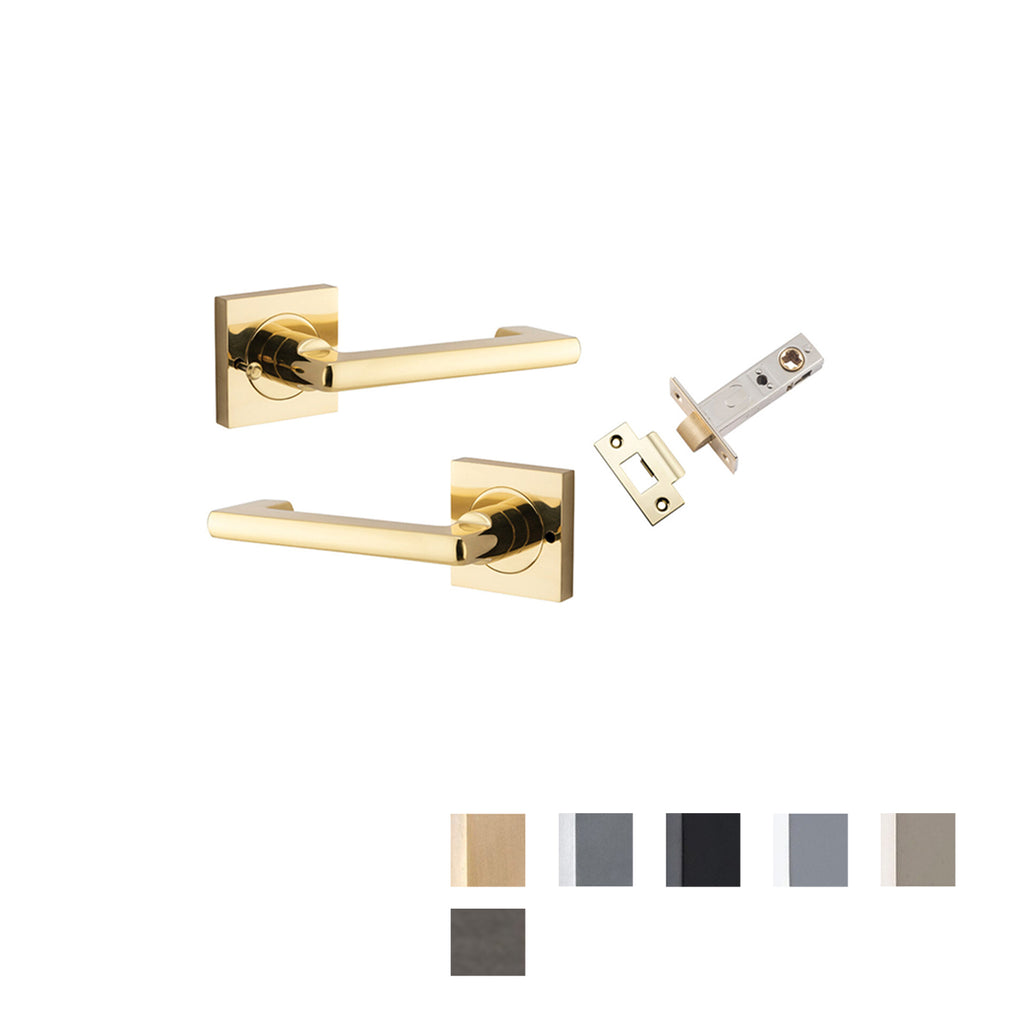

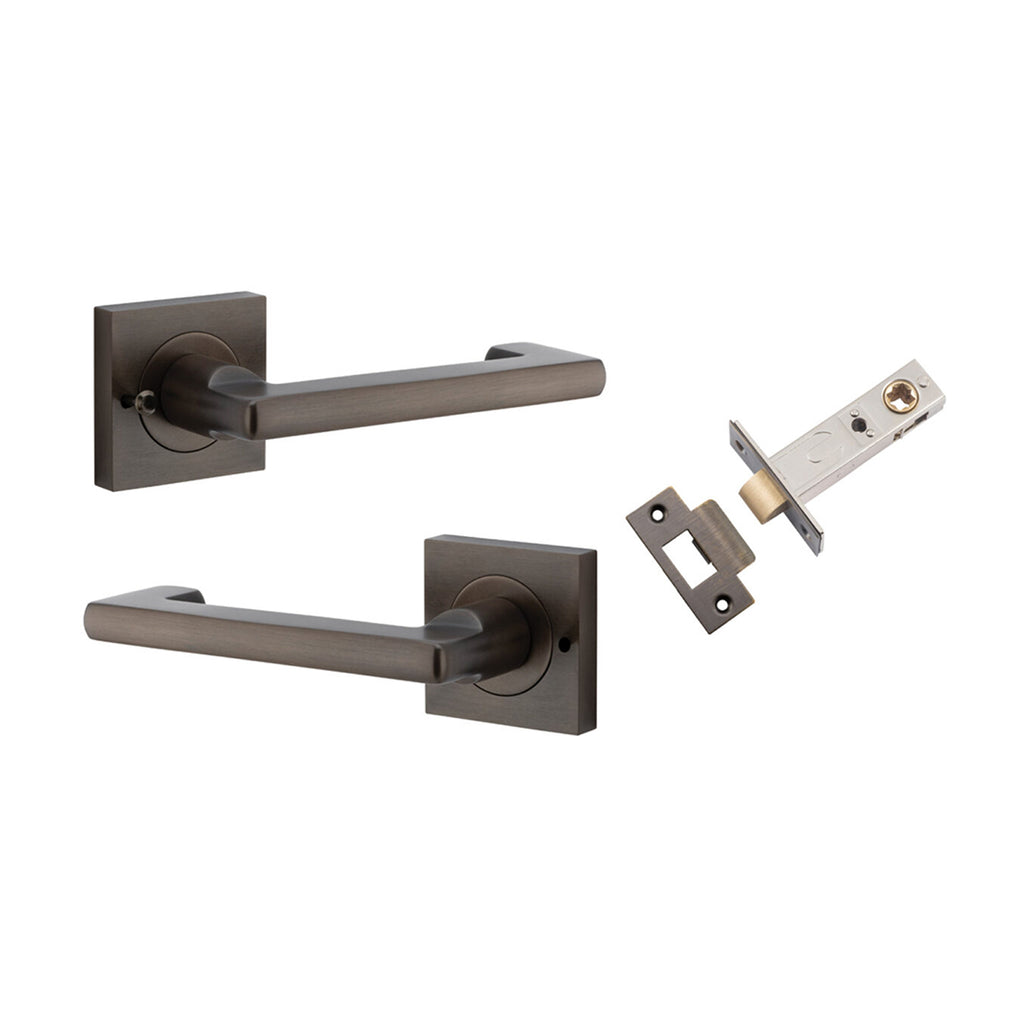

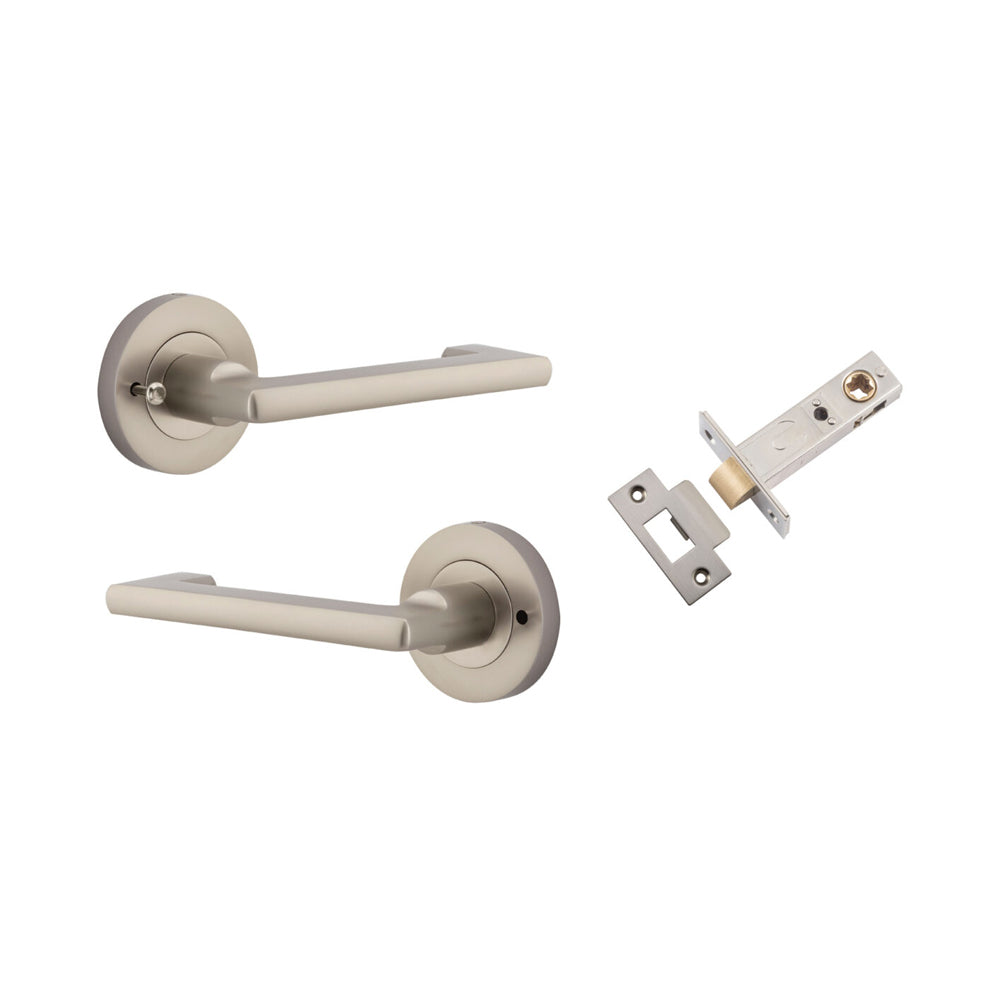

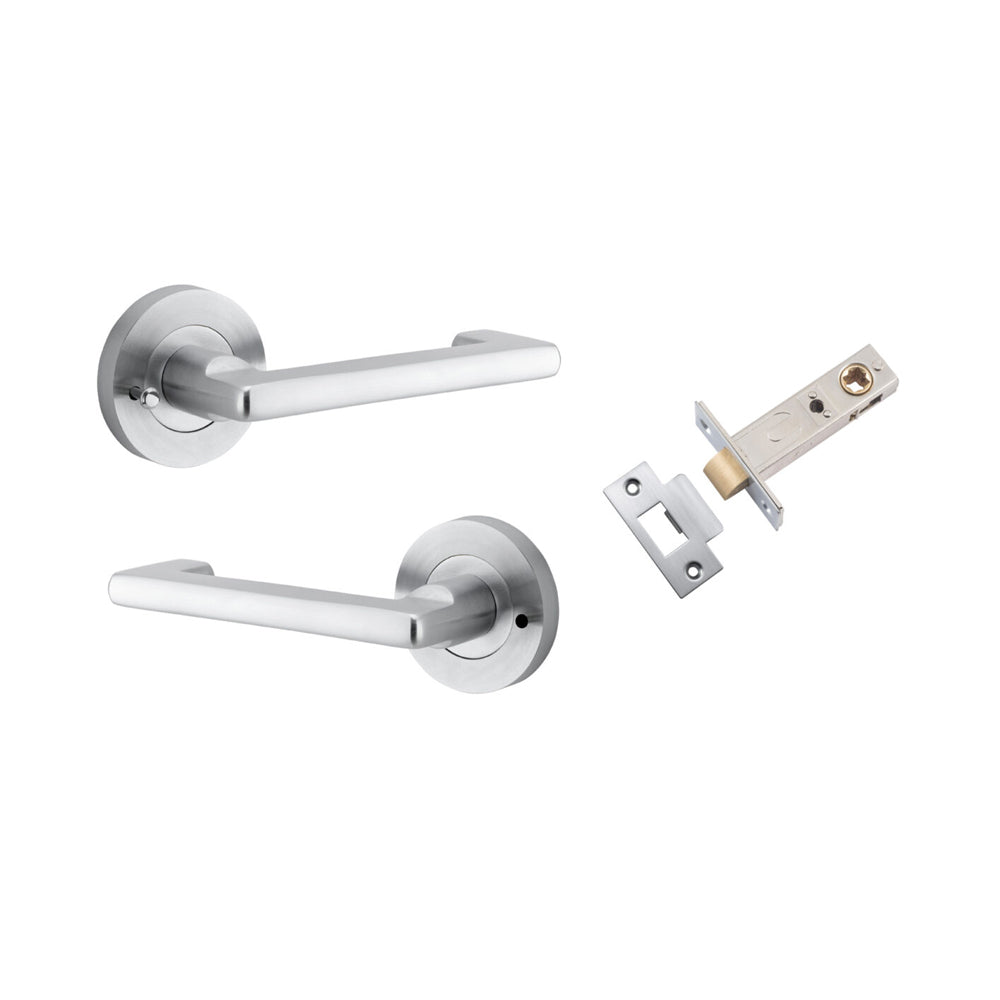

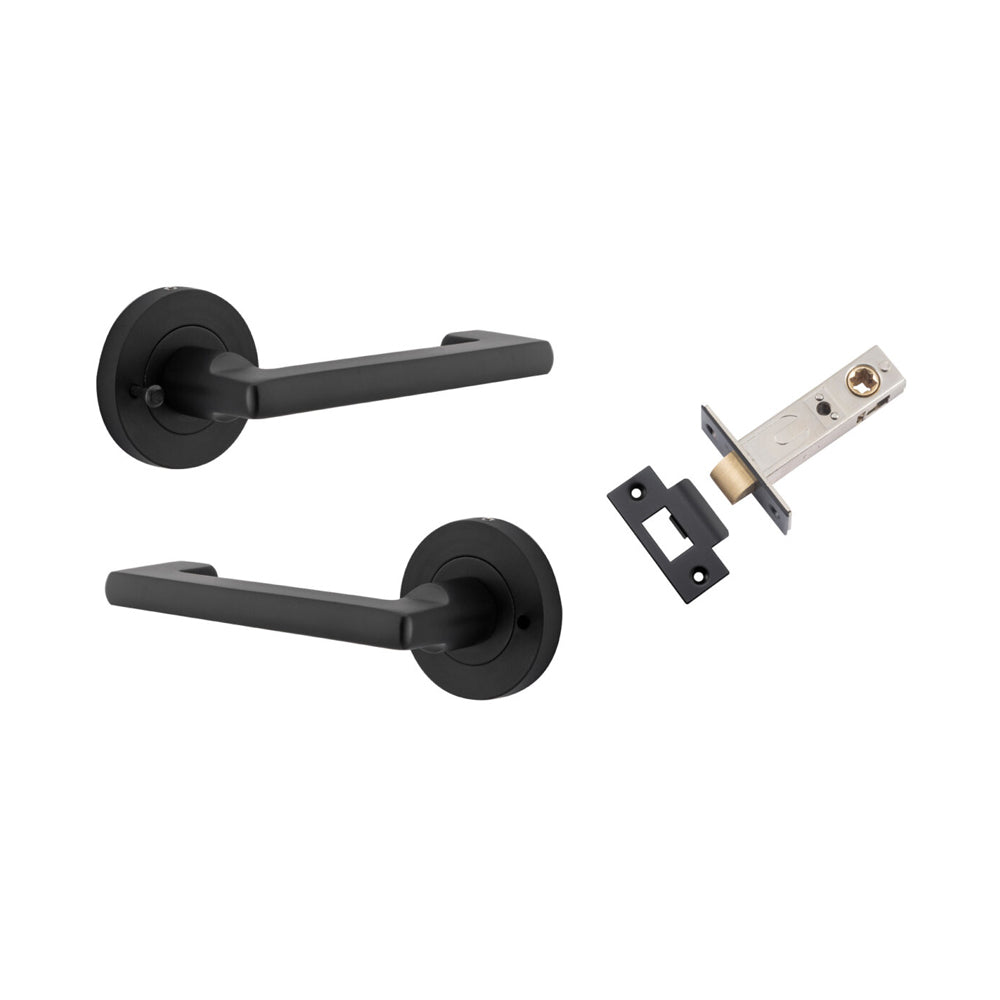

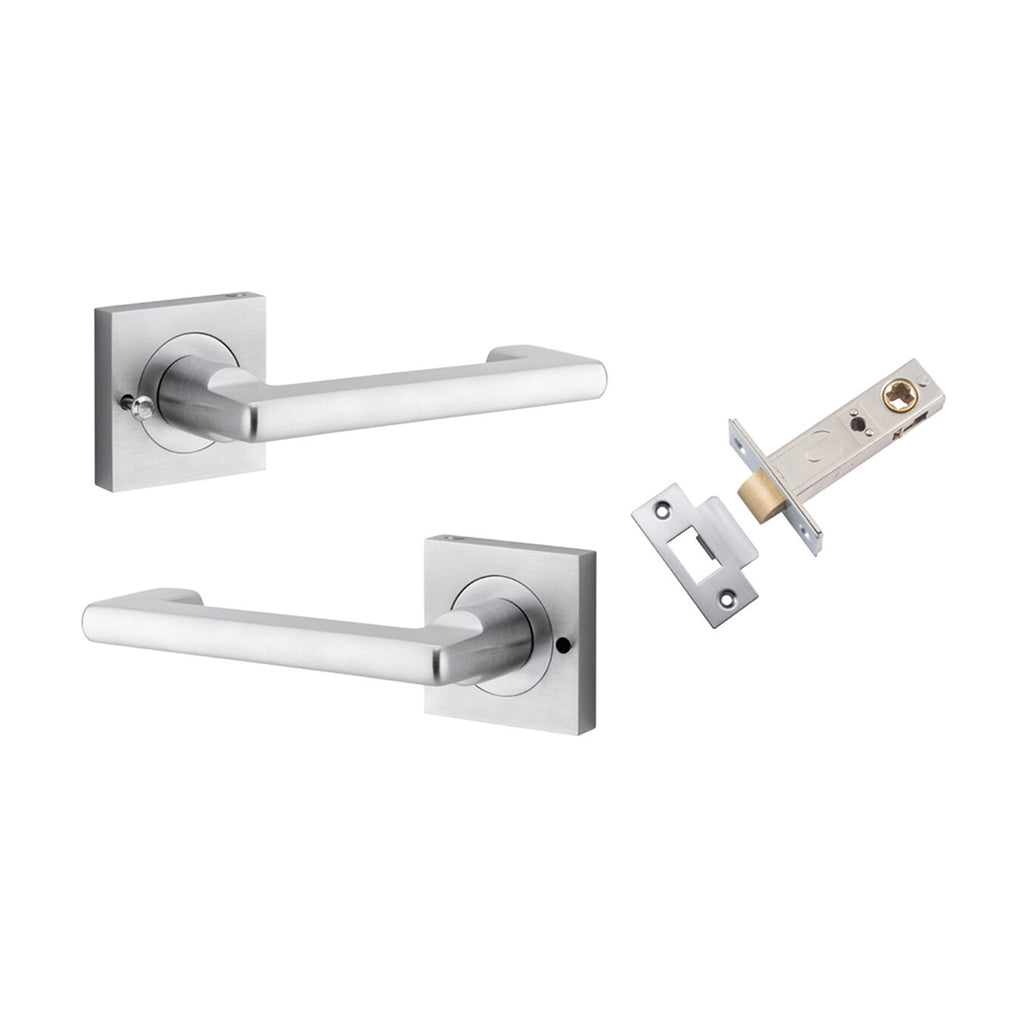

What's in the box: (Inbuilt Privacy Kit)

• 2 x Levers / Knobs on Backplates of your choice
• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate
• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• The Baltimore Return lever features sleek lines and is both fire-rated to 2 hours and DDA compliant, making it the perfect option for any commercial project.
• Available in Iver's full range of finishes and complementing the Baltimore range of products.

Specifications:

• Backplate Diameter: 52mm
• Height: 52mm/58mm
• Width: 52mm/58mm
• Projection: 58mm
• Backset: 60mm

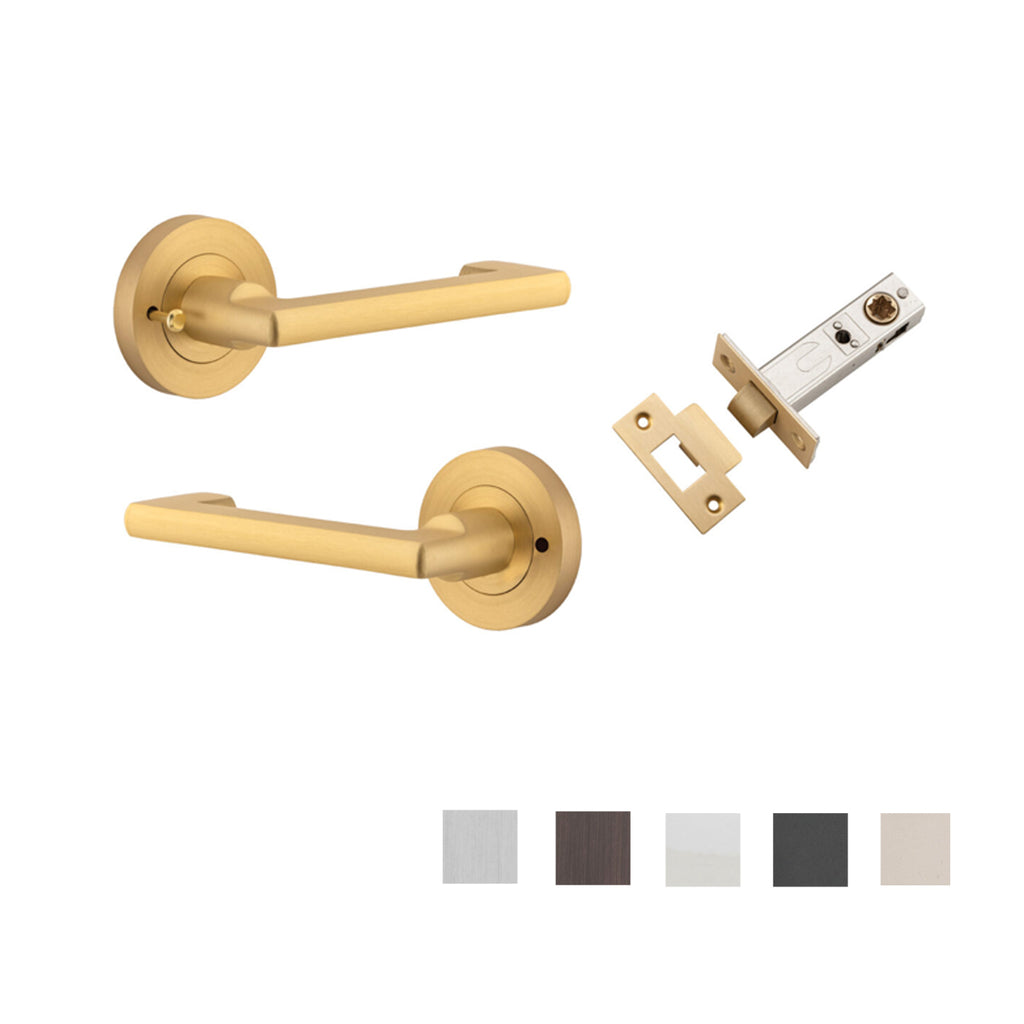

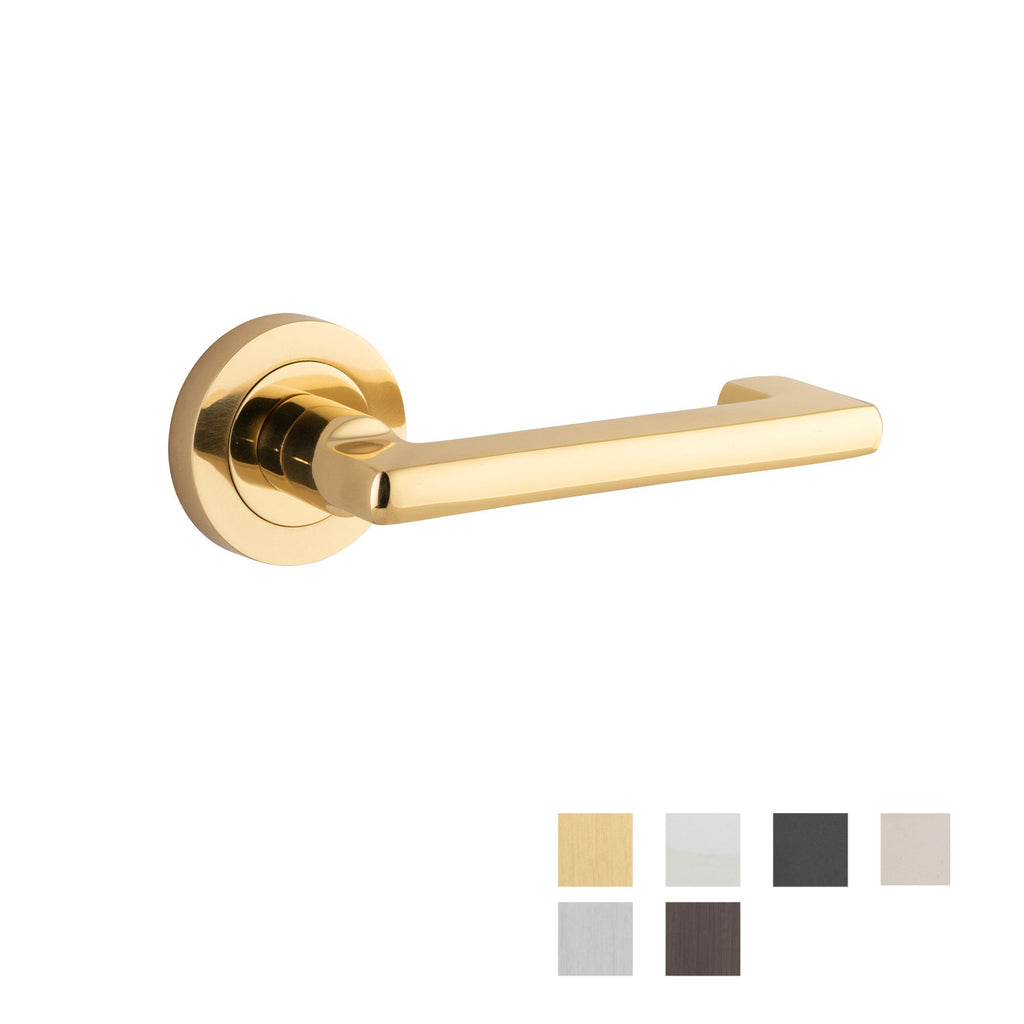

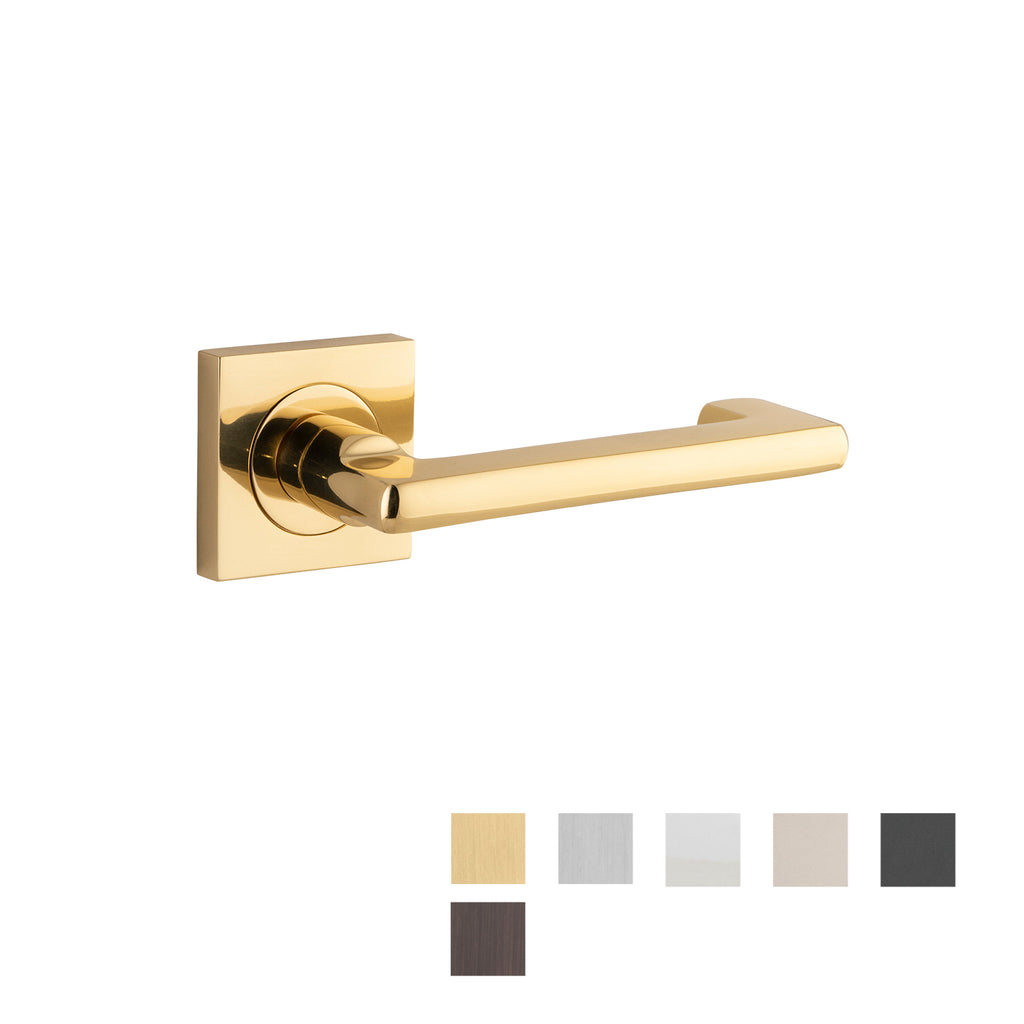

• Available Finish:
  • Brushed Brass
  • Brushed Chrome

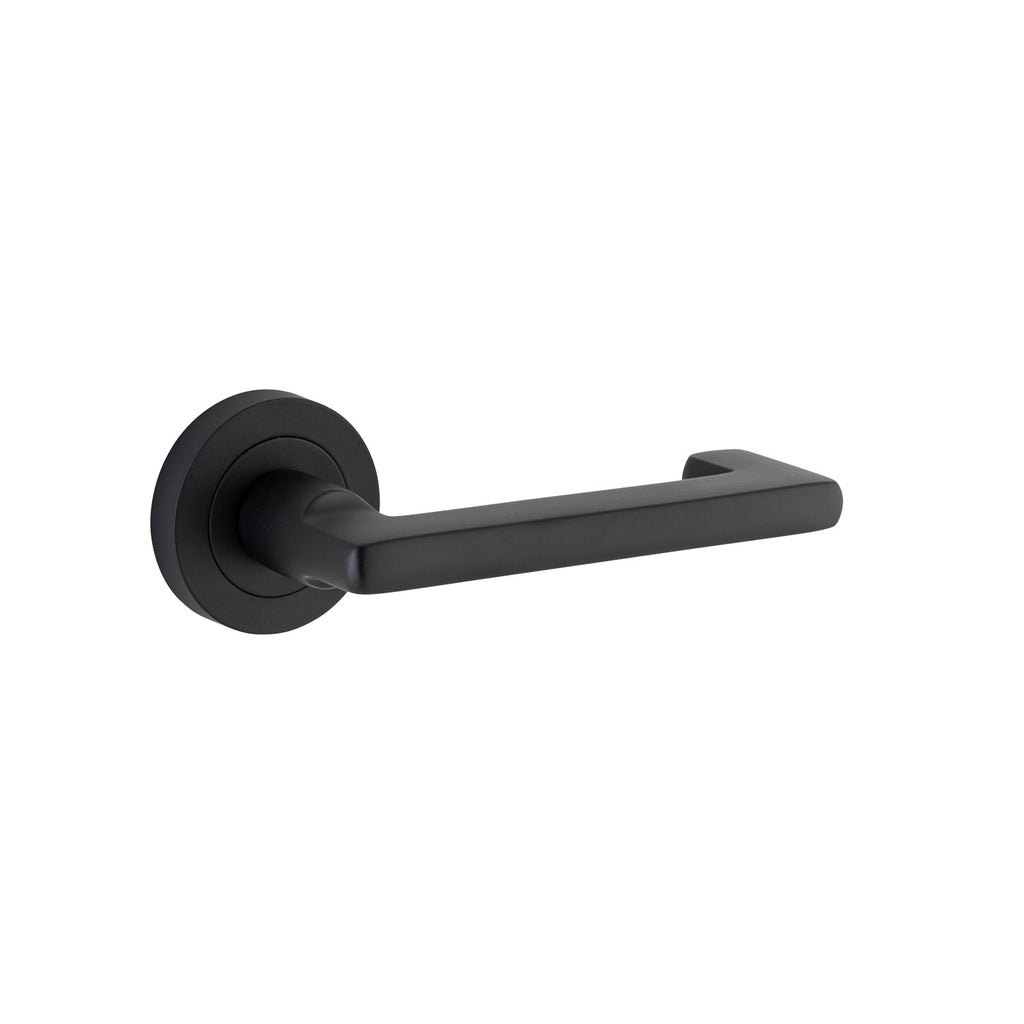

  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Satin Nickel
  • Signature Brass

With this listing, by answering a couple of short questions, you can create a kit customised to your needs:

For "Passage" doors (e.g. a bedroom that doesn't need locking), you will generally need a Lever Door Handle/knob + a Tube Latch. If it's a double door, you may also require flush Bolts. If it's a rebated double door you will need a "rebate kit".

Flush Bolts are used to secure Double Doors, You can choose non-lockable and key-lockable option in various lengths.

When using flush bolts:

• We recommend you use one at the top and another at the bottom to keep the door secure and from rattling.
• For taller doors (2100mm and above) most customers prefer to use a 300mm on top of the door and 150mm on the bottom for extra security and protection against the wind. Alternatively, some customer's use a magnetic catch (such a PLS24PRO Magnetic Catch).

For "Privacy" doors (e.g. a bathroom, en suite or a bedroom that you want to lock from the inside by turning a snib) you will generally need a tube latch as well a privacy bolt

For "Entrance" doors (e.g. a front / back door or any door that you want to lock with a key) you will generally need:

• A Mortice lock (if you have a rebated (slightly overlapping) double door, please choose a "rebated" version (which also comes with a rebate kit)
• Once you've determined the thickness of your door, you can select either a "Key/Key" (lock and unlock with a key from both sides) or a "Key/Thumb" (meaning you can lock the door from the inside using thumb turn, instead of a key). The choice here is one of personal preference.

Flush Bolts

• For double doors, you will also need flush bolts.
• Flush Bolts are used to secure Double Doors, You can choose non-lockable and key-lockable options in various lengths.
• When using flush bolts, most customers prefer to use a 300mm on top of the door (as it's easier to reach) and 150mm on the bottom for extra security and protection against the wind.

Hinges

(Amongst others) we offer Ball Bearing, Fixed Pin and Loose Pin hinges:

• Ball Bearing - We recommend using these for Entrance and heavier doors. This is because the ball bearing reduces friction on the hinge and stops squeaking and wearing of the hinge
• Fixed Pin - Mainly used on internal doors. They can also be used on entrance doors that are not heavy
• Loose Pin - Internal use only. Mostly used on bathroom door so the door can be removed (lifted off) in the locked position (e.g. in case of an emergency)

Depending on the weight of your door, you will generally need 3 hinges for an Entrance door (which are more solid) and 2 hinges for internal doors.

Please use the tables below as a guide on the number of hinges you require, as well as the recommended hinge positioning.
