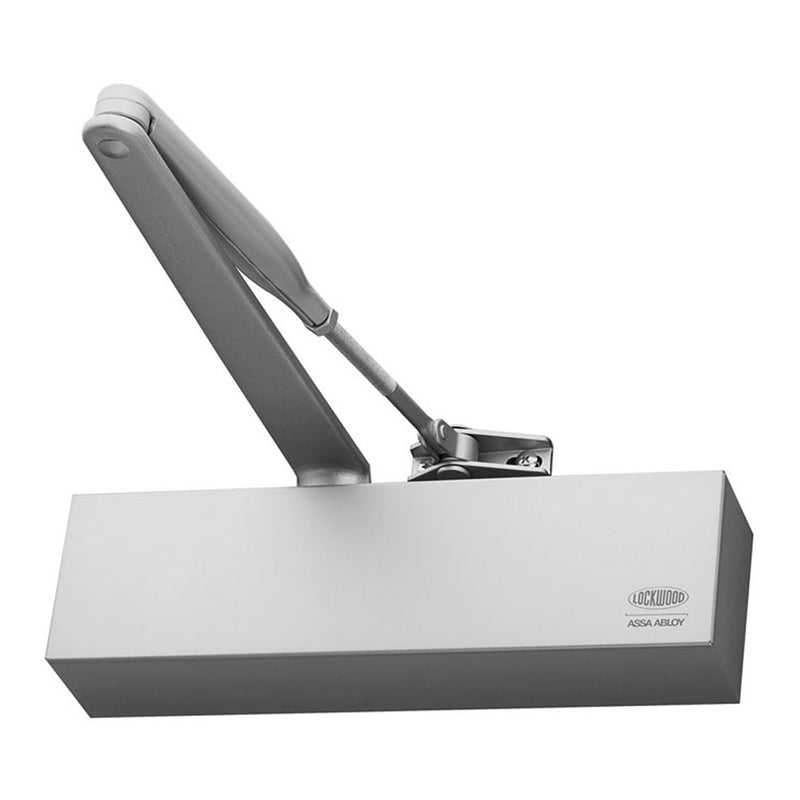

Lockwood Door Closer
7714DASIL
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that automatically closes a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Features:
- Rack and pinion adjustable power door closer suitable for architectural and commercial applications
- PDF files
Specifications:
- Brand: Lockwood
- Power: EN adjustable 1 to 4.
- Back Check: Adjustable
-
Hold Open:
- Standard Arm Closer does not have Hold-Open feature.
- Hold-Open: Closer can be set at any angle up to 150° of opening
- Handing: Non-handed, Suitable for left or right hand doors
- Cover: Fully formed metal
- Materials: Extruded aluminum body manufactured from high-performance silicon alloy
- Mechanism: Rack and pinion design
- Mounting: Regular, parallel and over-door mounting
- Valves: Adjustable closing and latching speed valves with overload protection
- Delayed Action: Adjustable
- Finish: Silver
Standards and Compliance
- The Lockwood 7714DA series closer has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets.
Note: Hold open option is not approved on any fire door.
