MCCALLUM ALUMINIUM INTERFOLD FAST-FIX HINGE 100MM SATIN NATURAL ANODISED A124

Prime HardwareSKU: MCCA124
filler

Price:
$7.83

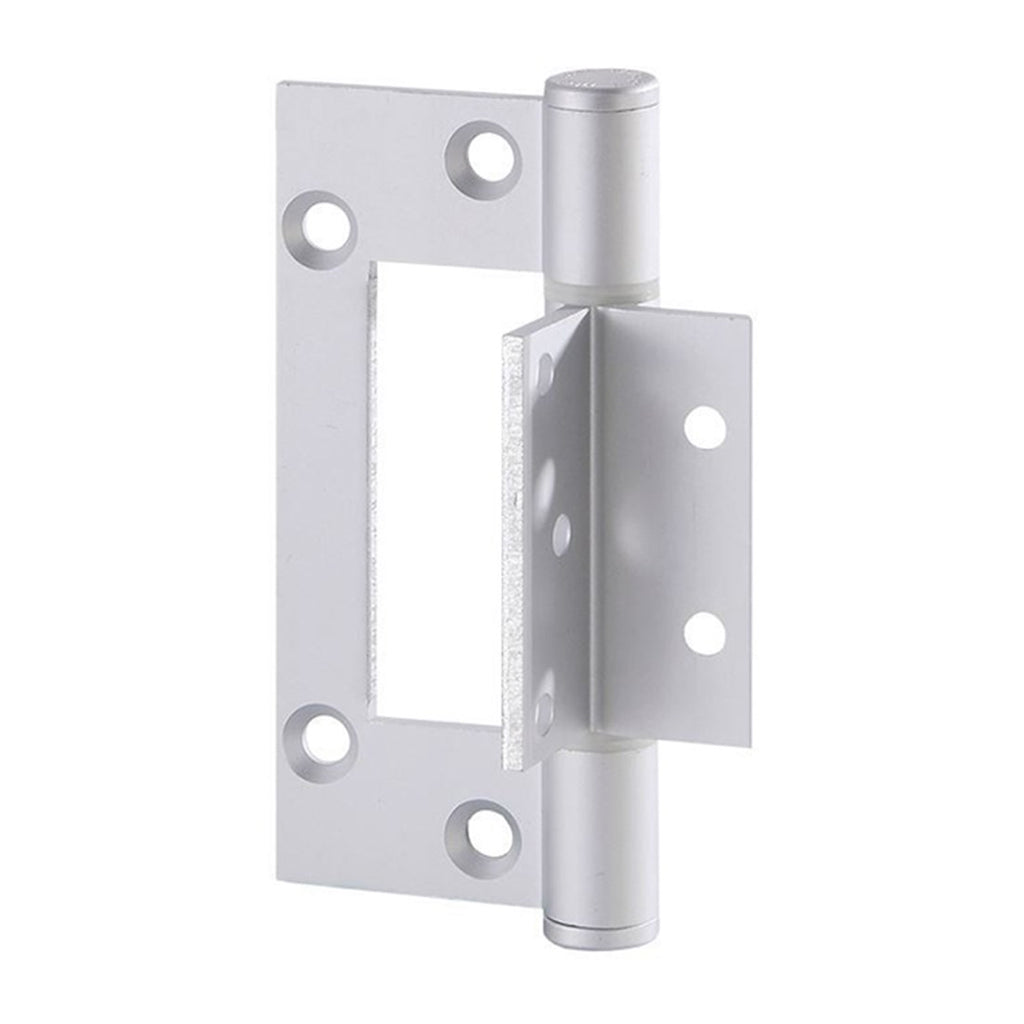

McCallum Aluminium Interfold Fast-Fix Hinge
A124

Interfold Hinge used for concealed, interior, and partial doors, as well as providing sufficient closing force for wood and lightweight metal doors.

Interfold Hinge Function - suitable for either Centre Pocket or Front Edged Glazing systems.

Application:

  • Suitable for aluminium entrance doors in high usage situations
  • Suitable for either centre pocket or front edge glazing systems
  • Suitable for some timber door applications. Pre-drilling of the holes in the timber may be required
  • Fastening screws supplied

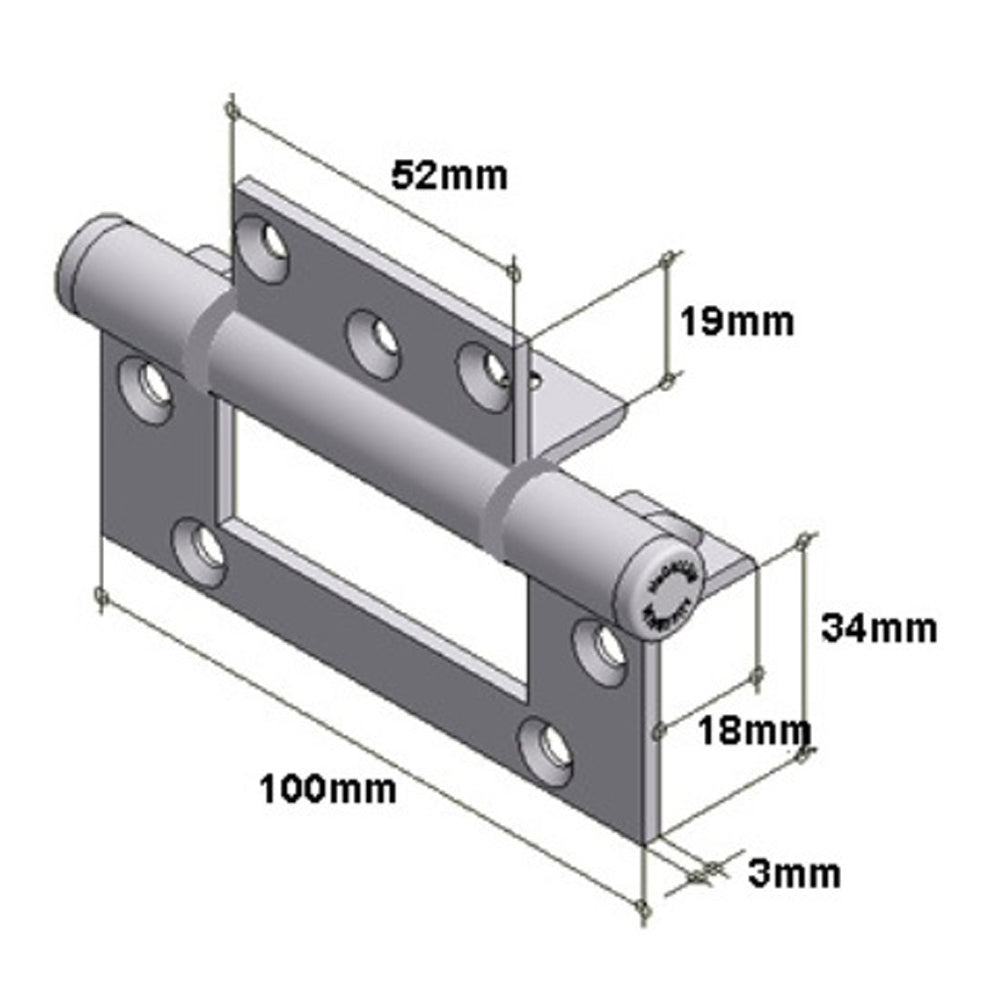

Specifications:

  • Brand: McCallum
  • Door Thickness: Minimum 35mm
  • Max. Door Weigth: 20kg
  • Length: 100mm
  • Width: 48.5mm
  • Thickness: 3mm
  • Material: High strength T.6 minimum tensile 254 mpa
  • Pin Diameter: 6mm stainless steel with machined chamfer both ends
  • Bushes: Flanged nylon
  • Knuckle: Squareline - Heavy duty
  • Aluminium Endcaps: Pressed-in interference fit
  • Finish: Satin Natural Anodised

Installation Guide Only:

  • When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high
  • as possible. For excessive usage a fourth hinge may be required.
  • Standard Door: 2040 high x 820 wide x 20 kgs – 3 hinges.
  • Locator allows for fast fixing.
  • PDF file

Includes: 1 x Hinge w/ screws
