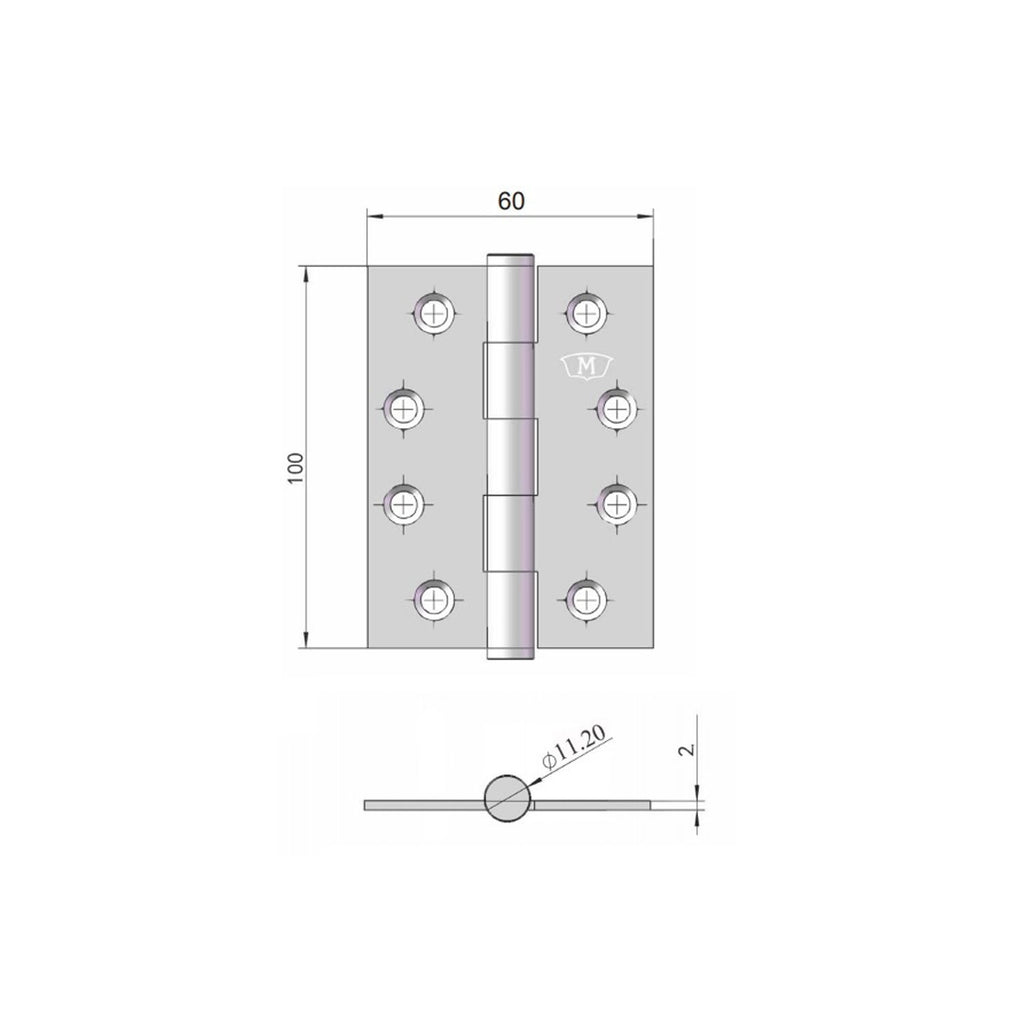

MCCALLUM STAINLESS STEEL BUTT HINGE FIXED PIN STAINLESS STEEL 100X60MM S210

Prime HardwareSKU: MCCS210
filler

Price:
$9.45

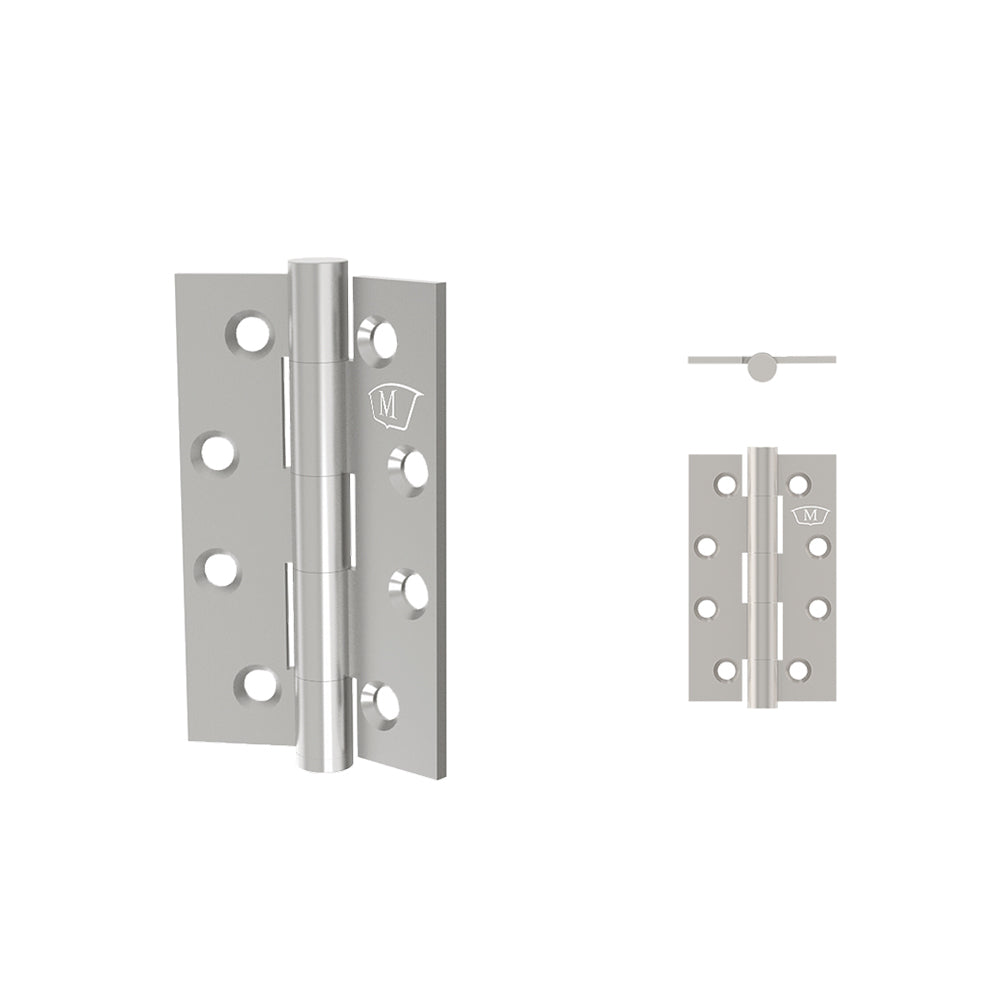

McCallum Stainless Steel Butt Hinge
S210

Application:

  • Suitable for aluminum and timber doors with aluminum, steel and timber frames

Specifications:

  • Stamped with McCallum crest
  • Fixed Pin
  • Material: Stainless Steel 304 Grade
  • Pin Diameter: 6.9mm - Stainless Steel 304 Grade
  • Knuckle: Round
  • Endcaps: Pressed-in interference fit. Stainless Steel 304 Grade
  • Standard Door: 2040mm (H) x 820mm (W) - 3 hinges
  • Finish: Satin Stainless Steel

Installation Guide Only:

  • When using a door closer, we recommend a minimum of 4 hinges be used, with the top hinge located as high as possible.

Fixing:

  • 32mm x 10g stainless steel fasteners for timber (supplied)
  • 12mm x M5 stainless steel metal fasteners (supplied)
  • Pop rivets are not recommended
  • Not recommended for Bi-Fold door systems

Brand:

  • McCallum
